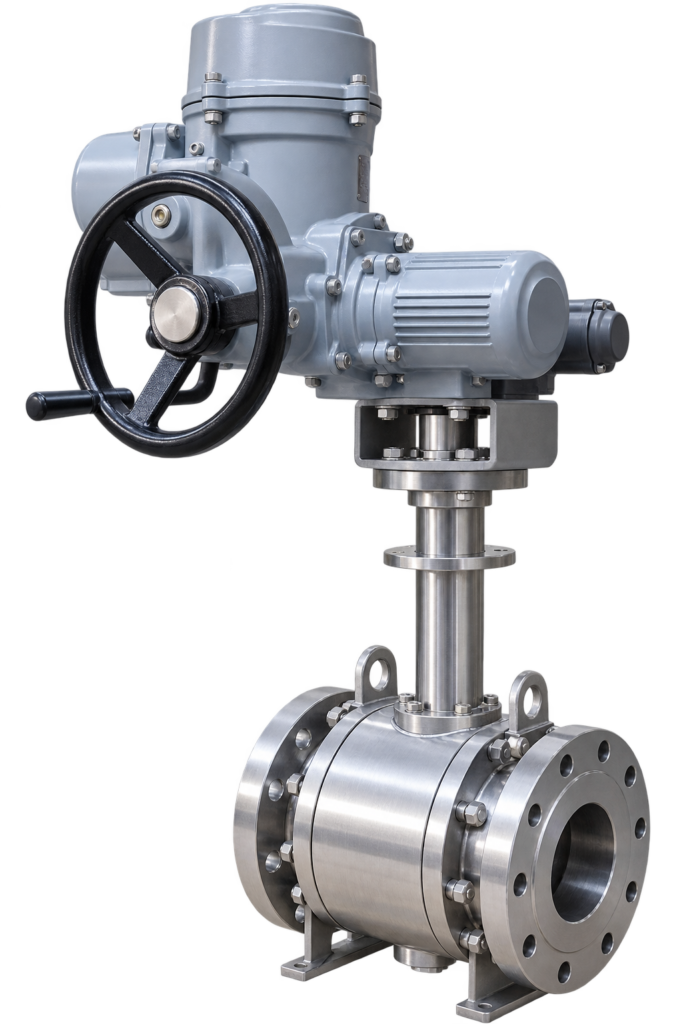

Electric Cryogenic Ball Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Electric Cryogenic Ball Valve Manufacturer & Supplier in India, offering high-performance automated ball valves for LNG, LPG, liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), liquid hydrogen (LH₂), and other cryogenic applications. Equipped with a precision electric actuator and extended bonnet, these valves deliver accurate quarter-turn operation, reliable shut-off, and seamless integration with industrial automation systems in extremely low-temperature environments.
Specifications
Size Range
DN15 to DN300 (½" to 12")
Body Material
ASTM A351 CF8, CF8M, CF3, CF3M, Stainless Steel
Power Supply
24V DC, 110V AC, 230V AC, 415V AC
Temperature Range
-196°C to +80°C
Pressure Rating
ANSI Class 150, 300, 600 & 900
Ball Material
SS304, SS316, SS316L
Control Signal
4–20 mA, 0–10 V, Modbus (Optional)
Leakage Class
Bubble Tight Shut-Off
Product Images
Frequently Ask Questions
An Electric Cryogenic Ball Valve is designed for very low-temperature applications and uses an electric actuator to automatically open or close the valve.
The extended bonnet helps keep the stem sealing and packing area away from extreme cryogenic temperatures, improving sealing performance and reliability.
Yes. Electric Cryogenic Ball Valves can be used for LNG storage, transfer, processing, and pipeline isolation, subject to correct cryogenic specification.
The electric actuator rotates the ball approximately 90° to open or close the flow passage. It can be operated locally or remotely through a control system.
Depending on the valve design and materials, it can be suitable for temperatures down to approximately -196°C.
Alis Valves manufactures and supplies Electric Cryogenic Ball Valves for automated isolation and control in LNG, industrial gas, and other low-temperature applications.
