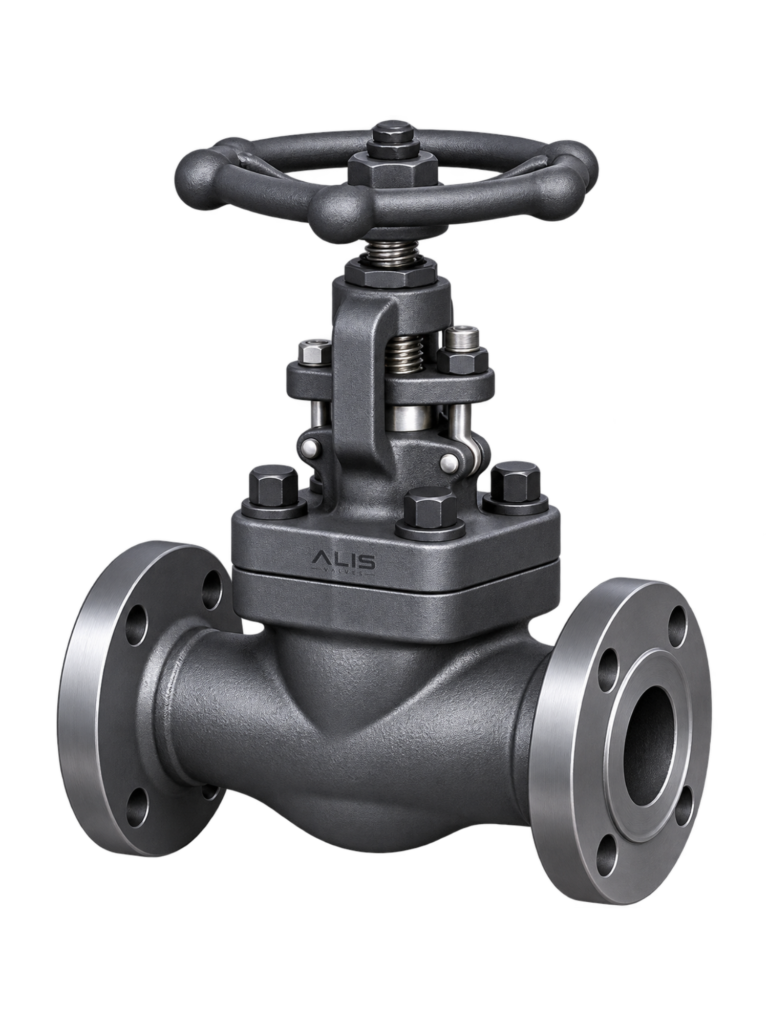

Straight Pattern Globe Valve
Resistant
Sealing
Operation
Long Life
A Globe Valve is a linear motion valve designed for precise flow regulation and reliable shut-off in industrial piping systems. Its disc-and-seat design provides excellent throttling performance, making it ideal for controlling the flow of liquids, gases, steam, and other process media. Globe valves are widely used in power plants, oil & gas, chemical processing, water treatment, and various industrial applications.
Specifications
Pressure Rating
PN10, PN16, PN25, PN40, Class 150, 300, 600
Disc Material
SS304, SS316, Alloy Steel
Media
Water, Steam, Oil, Gas, Air, Chemicals
Accesories
AFR, Positioner, Solenoid Valve, Limit Switch
Body Material
Cast Iron, Ductile Iron, WCB, SS304, SS316, Alloy Steel, Forged Steel
Seat Material
Metal Seat / PTFE (Application Dependent)
Leakage
Bubble Tight Shut-Off (Soft Seat) / Metal-to-Metal (Metal Seat)
Product Images
Frequently Ask Questions
A Straight Pattern Globe Valve is a globe valve with an inline inlet and outlet, where the flow enters and exits the valve in a generally straight pipeline arrangement. It is primarily used for flow regulation, throttling and isolation.
Its main advantage is its conventional inline piping arrangement combined with excellent throttling capability, making it suitable for general industrial flow-control applications.
Anti-cavitation trim is designed to control pressure reduction through multiple stages or specially designed passages, reducing damaging vapor-bubble formation.
The valve uses a linear-moving disc or plug.
Disc moves away from the seat → Flow increases
Disc moves toward the seat → Flow decreases
Disc contacts the seat → Flow stops
Alis Valves is a Straight Pattern Globe Valve manufacturer and supplier in India, providing industrial valve solutions for steam, oil & gas, refinery, petrochemical, chemical, power generation, water and process industries. The straight-pattern configuration is suitable for applications requiring reliable flow regulation, throttling and isolation.
