Angle Type Globe Valve

Corrosion
Resistant
Leak Tight
Sealing
Automated
Operation
Low Maintenance
Long Life

Alis Valves offers high-performance Angle Type Globe Valves designed for applications where the flow direction needs to change by 90 degrees. This valve acts as both a control valve and an elbow, reducing the need for additional pipe fittings and minimizing pressure loss.Engineered for durability and efficient flow control, angle globe valves are widely used in steam, condensate, and high-pressure systems where precise throttling and directional change are required.

DOWNLOAD CATALOGUE

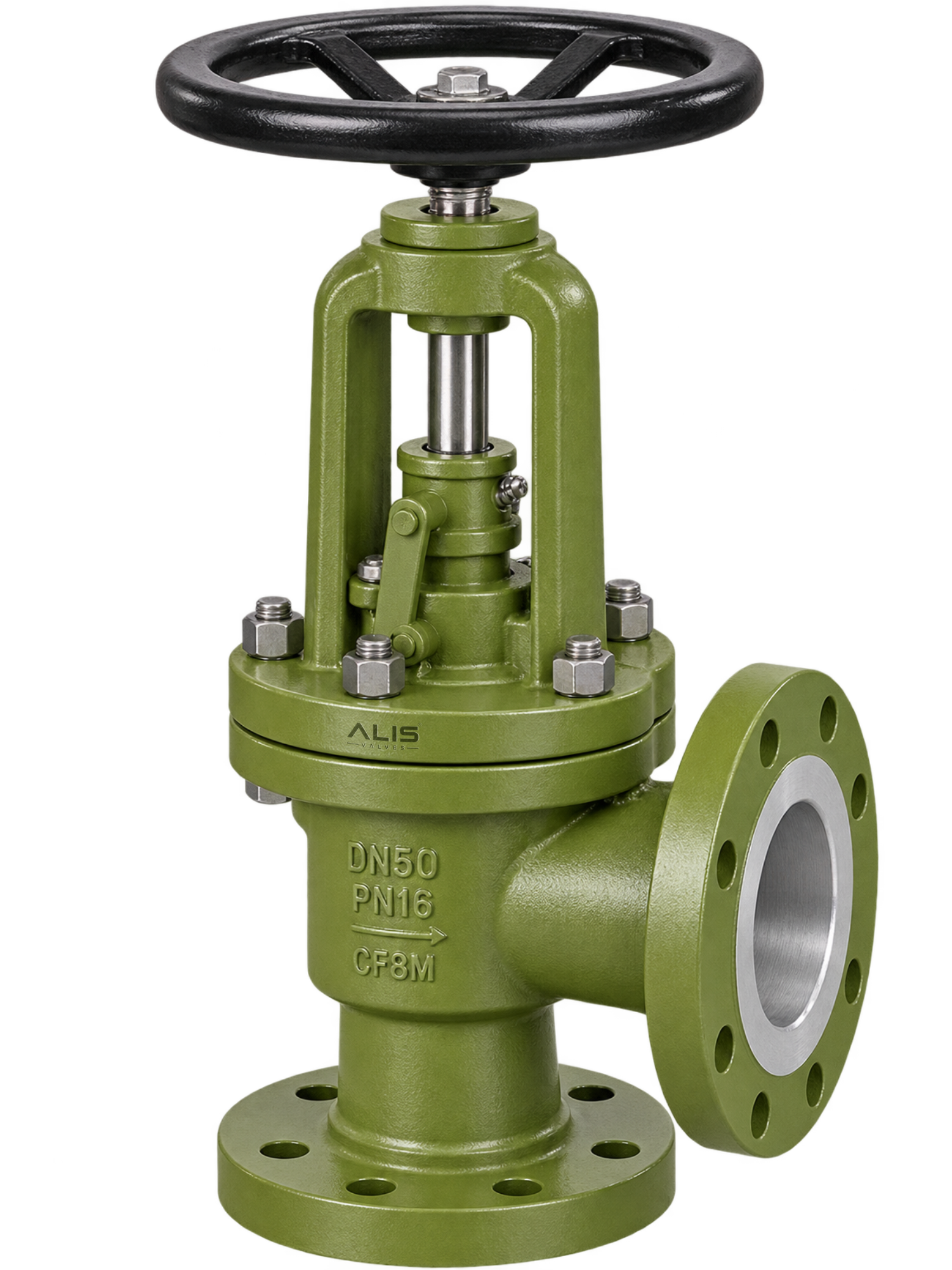

Angle Type Globe Valve

Product Specifications and Overview

Alis Valves offers high-performance Angle Type Globe Valves designed for applications where the flow direction needs to change by 90 degrees. This valve acts as both a control valve and an elbow, reducing the need for additional pipe fittings and minimizing pressure loss.Engineered for durability and efficient flow control, angle globe valves are widely used in steam, condensate, and high-pressure systems where precise throttling and directional change are required.

Size Range

DN 15 to DN 300

Pressure Rating

PN 16 to PN 100

Body Material

Cast Steel / Stainless Steel / Alloy Steel

Disc Type

Plug / Parabolic Disc

Seat Material

Metal Seated

End Connection

Flanged / Butt Weld

Operation

Manual / Pneumatic / Electric Actuated

Temperature Range

Up to 550°C (Depends on Material)

Media

Steam, Oil, Gas, Condensate

Download GAD Drawing
Angle Type Globe Valve

Product Gallery

Angle Type Globe Valve

Industries Served

Cement

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

An Angle Type Globe Valve is a globe valve in which the inlet and outlet connections are arranged at approximately 90° to each other. The valve combines the throttling characteristics of a globe valve with an angle-pattern flow path.
Yes. Globe valves are specifically designed for flow regulation and throttling, making them suitable for controlling flow, pressure and temperature.
Alis Valves is an Angle Type Globe Valve manufacturer and supplier in India, providing industrial valve solutions for steam, oil & gas, refinery, petrochemical, chemical, power generation and process industries. Angle-pattern globe valves are suitable where flow regulation and a 90° change in pipeline direction are required.
Its major advantage is that the valve changes the direction of flow by approximately 90°, which can eliminate the need for a separate pipe elbow in certain piping arrangements.
An Angle Globe Valve describes the valve's angle-pattern body and globe-valve construction. An Angle Control Valve generally refers to an angle-pattern valve specifically configured with an actuator and control trim for automatic modulating service.
