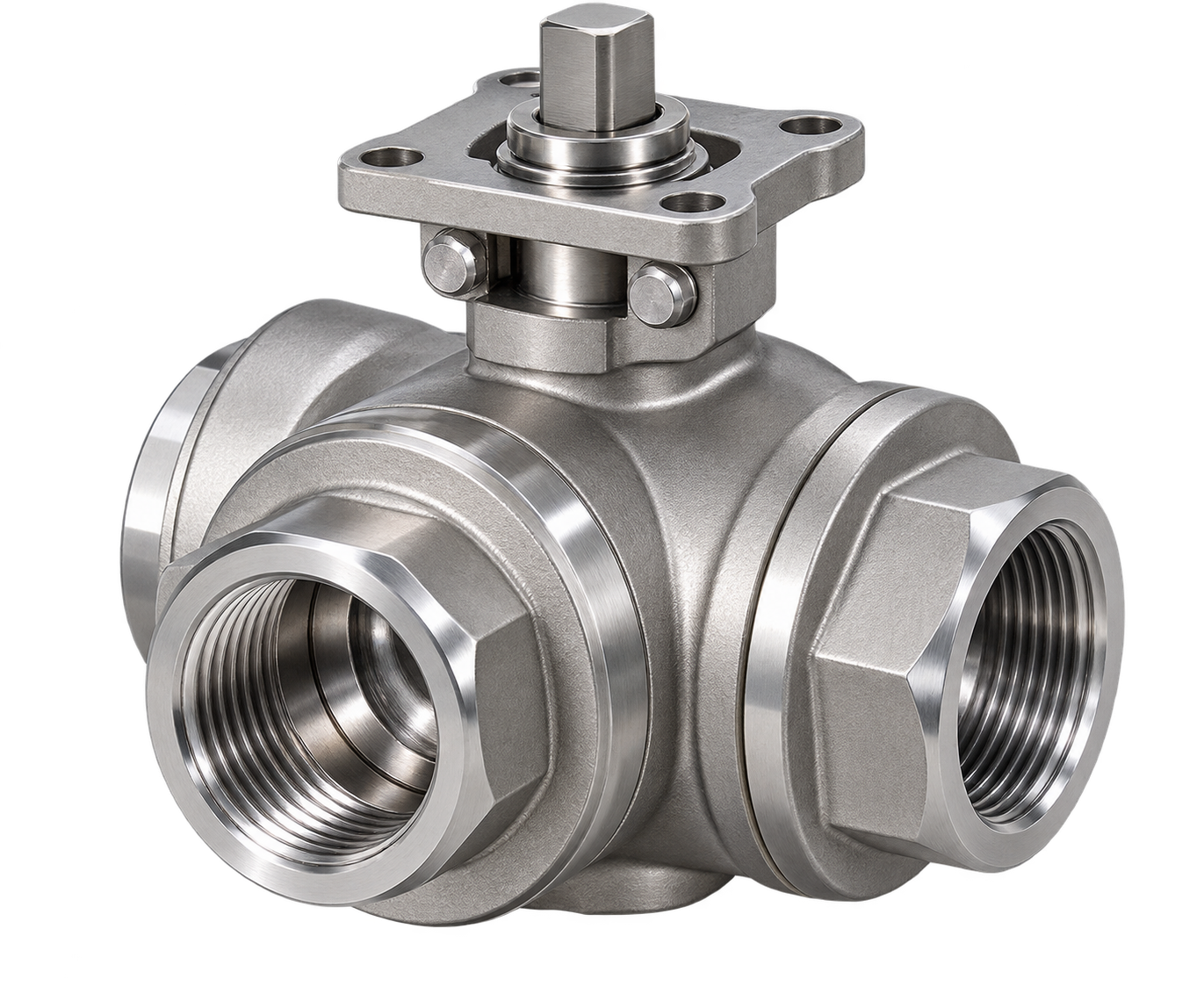

3-Way L Port Ball Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted 3-Way L Port Ball Valve Manufacturer and Supplier in India, offering precision-engineered multi-port ball valves for efficient flow diversion and shut-off in industrial piping systems. Designed with an L-shaped ball port, these valves direct flow between two outlet ports while ensuring reliable sealing, low operating torque, and dependable performance in chemical, water treatment, oil & gas, pharmaceutical, and process industries.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN15 to DN300 (½" to 12")

Port Configuration

L-Port (90° Flow Diversion)

Pressure Rating

ANSI Class 150, 300 & 600 / PN16, PN25, PN40

Body Material

WCB, CF8, CF8M, SS304, SS316

Ball Material

SS304, SS316

Seat Material

PTFE, RPTFE, PEEK

End Connection

Flanged, Threaded, Socket Weld, Butt Weld

Temperature Range

-20°C to +200°C (Depends on seat material)

Design Standards

API 608, ASME B16.34, ISO 5211

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a 3-Way L-Port Ball Valve?

A 3-Way L-Port Ball Valve uses an L-shaped passage through the ball to direct flow between selected ports in a three-port piping arrangement.

Can an L-Port Ball Valve Mix Two Flow Streams?

Generally, an L-port design is intended for flow switching rather than mixing two inlet streams into one outlet. A suitable T-port configuration is normally considered when mixing or more complex flow routing is required.

Who Is a 3-Way L-Port Ball Valve Manufacturer in India?

Alis Valves manufactures and supplies 3-Way L-Port Ball Valves for flow diversion, pipeline selection, and automated process applications.

What Is an L-Port Ball Valve Used For?

It is mainly used for flow selection, diversion, and routing where the process requires switching flow between different pipeline paths.

How Many Ports Does It Have?

A 3-way L-port ball valve has three connected ports, with the internal L-shaped ball passage determining which ports communicate.
