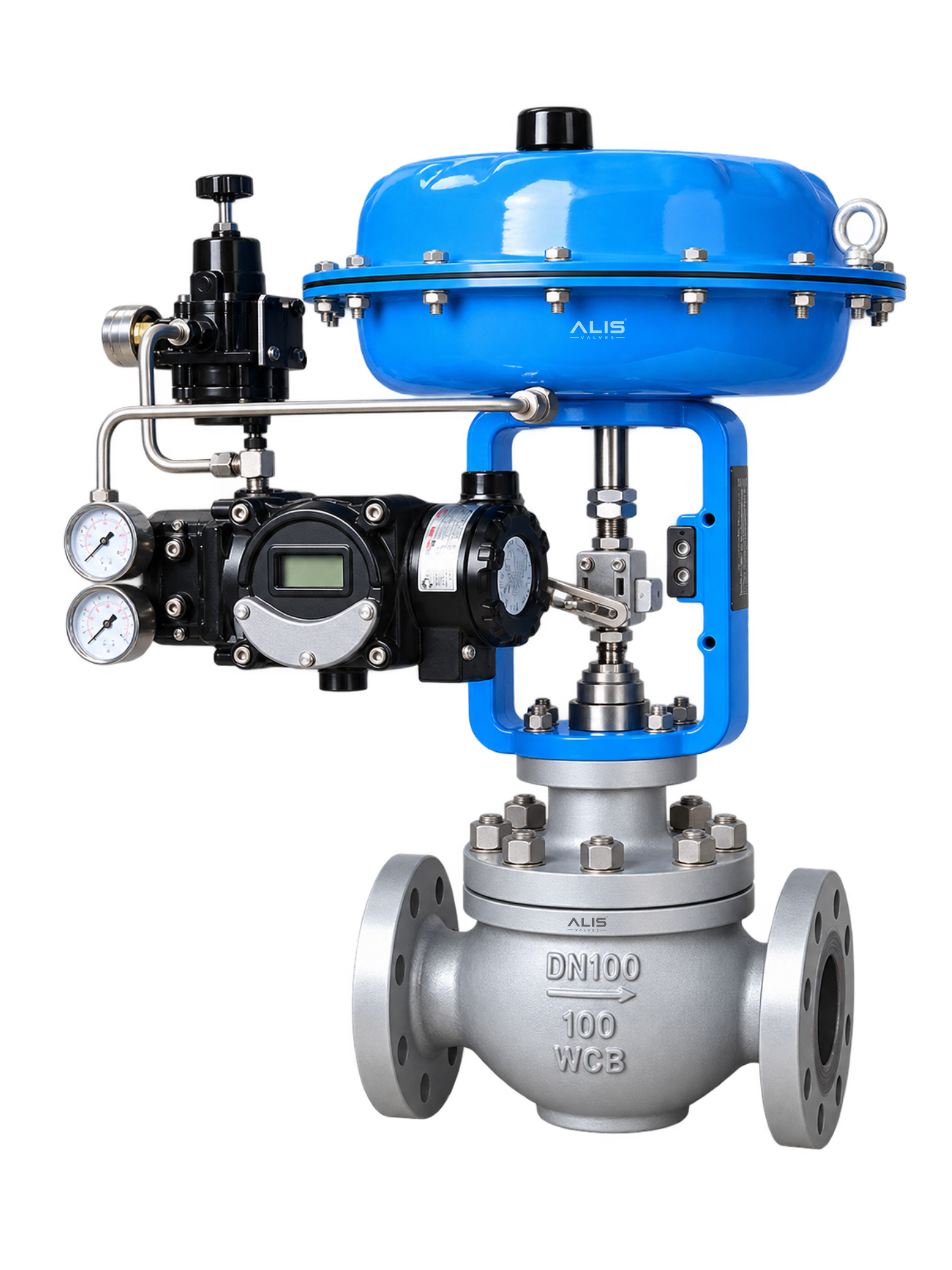

Cage Guided Pneumatic Control Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted Cage Guided Pneumatic Control Valve Manufacturer in India, offering precision-engineered control valves for high-pressure and severe service applications. Designed with a robust cage-guided globe valve and high-performance pneumatic actuator, these valves provide exceptional plug stability, precise flow regulation, low vibration, reduced noise, and reliable shut-off. They are ideally suited for oil & gas, petrochemical, power generation, steam, refineries, chemical processing, and industrial automation systems.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN25 to DN400 (1" to 16")

Pressure Rating

PN16, PN25, PN40, PN64, PN100 / ANSI Class 150, 300, 600 & 900

Body Material

Cast Steel (WCB), WC6, WC9, SS304, SS316, SS316L

Trim Material

SS304, SS316, Hardened Stainless Steel, Stellite Trim

Seat Material

Metal Seat / Soft Seat (Application Dependent)

End Connection

Flanged, Butt Weld

Actuator Type

Pneumatic Diaphragm / Pneumatic Piston

Air Supply Pressure

3 to 7 Bar

Control Signal

4–20 mA with Electro-Pneumatic Positioner / 3–15 PSI

Accessories

Positioner, Air Filter Regulator (AFR), Solenoid Valve, Limit Switch, Position Transmitter (Optional)

Temperature Range

-46°C to +550°C (Depending on Trim & Seat Material)

Leakage Class

ANSI Class IV, V, VI (As Required)

Design Standards

IEC 60534, ASME B16.34, ISA S75, ISO 5211

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a Cage Guided Pneumatic Actuated Control Valve?

A Cage Guided Pneumatic Actuated Control Valve is a globe-type control valve in which the valve plug is guided by a cage surrounding the plug. A pneumatic actuator moves the plug linearly to regulate process flow.

Who Is a Cage Guided Pneumatic Actuated Control Valve Manufacturer in India?

Alis Valves manufactures and supplies Cage Guided Pneumatic Actuated Control Valves for high-pressure and severe-service applications, including oil & gas, refineries, petrochemical plants, power generation, steam, chemical processing and industrial automation.

What Is the Difference Between Cage Guided and Double Seated Control Valve?

A cage-guided valve primarily describes how the plug is guided and how the trim is constructed, while double-seated refers to a valve having two seating surfaces. A cage-guided valve may be single-port or have other specialized trim arrangements.

What Is the Purpose of the Cage?

The cage provides stable and accurate plug guidance. It helps reduce lateral movement, vibration and instability, particularly under demanding flow conditions.

Is a Positioner Required?

For precise modulating control, a positioner is recommended. It improves positioning accuracy and repeatability.
