Cement
Engineered valve solutions tailored for critical Cement operating processes.

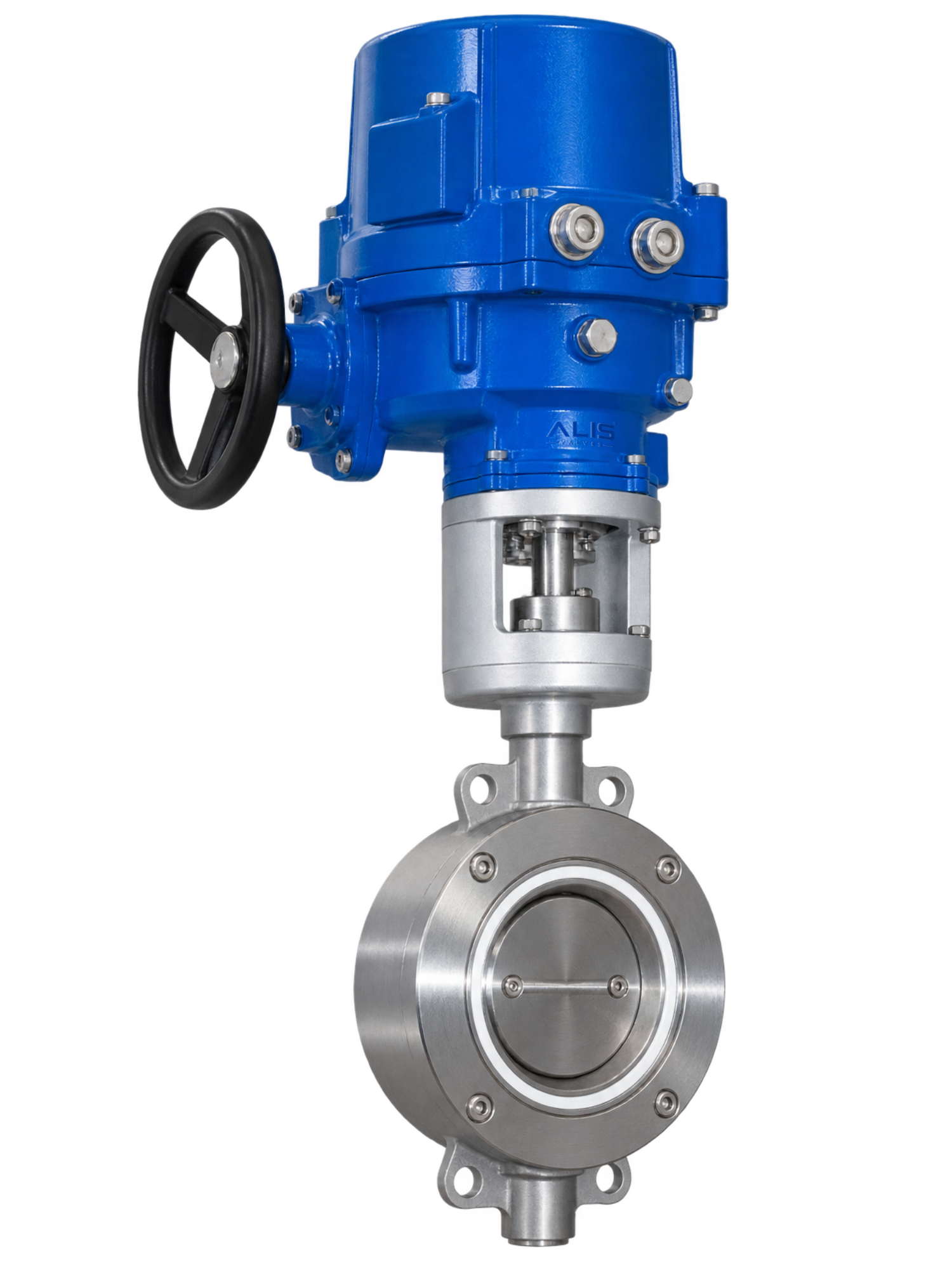

Electric Ceramic Butterfly Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Electric Ceramic Butterfly Valve Manufacturer & Supplier in India, offering high-performance automated butterfly valves for abrasive, corrosive, and severe service applications. Equipped with a precision electric actuator and advanced ceramic-lined disc and seat, these valves provide accurate quarter-turn operation, exceptional wear resistance, reliable shut-off, and long service life for mining, cement, power generation, chemical processing, and bulk material handling industries.
Product Specifications and Overview
Alis Valves is a trusted Electric Ceramic Butterfly Valve Manufacturer & Supplier in India, offering high-performance automated butterfly valves for abrasive, corrosive, and severe service applications. Equipped with a precision electric actuator and advanced ceramic-lined disc and seat, these valves provide accurate quarter-turn operation, exceptional wear resistance, reliable shut-off, and long service life for mining, cement, power generation, chemical processing, and bulk material handling industries.
Size Range
DN50 to DN500 (2" to 20")
Pressure Rating
PN10, PN16 / ANSI Class 150
Body Material
Cast Iron, Ductile Iron, WCB, Stainless Steel
Disc Material
Alumina Ceramic / Zirconia Ceramic Lined
Seat Material
Ceramic / PTFE (Application Dependent)
Actuator Type
Quarter-Turn Electric Actuator
Power Supply
24V DC, 110V AC, 230V AC, 415V AC
Control Signal
4–20 mA, 0–10 V, Modbus RTU (Optional)
Enclosure Protection
IP67 / IP68
Temperature Range
-20°C to +250°C (Higher on Request)
Design Standards
API 609, ASME B16.34, ISO 5211
Product Gallery
Applications
Ammonia
High-performance flow automation engineered for Ammonia operations.
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Frequently Ask Questions
An Electric Ceramic Butterfly Valve is a butterfly valve incorporating ceramic wear-resistant components and operated by an electric actuator for automated isolation or flow control.
Alis Valves manufactures and supplies Electric Ceramic Butterfly Valves for cement, mining, chemical, power, slurry, mineral-processing, and other demanding abrasive applications.
Yes, depending on the body, ceramic grade, sealing materials, and actuator temperature limitations. The actual operating temperature should be confirmed for the selected model.
Ceramic provides excellent resistance to abrasion, erosion, and many corrosive media, making it suitable for severe applications where conventional valve materials can wear quickly.
A ceramic-lined valve protects wetted internal surfaces with a ceramic lining, while a ceramic-seated design uses ceramic at the sealing interface. The exact construction depends on the valve model.
