Electric Lug Type Butterfly Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted Electric Lug Type Butterfly Valve Manufacturer in India, offering precision-engineered electrically actuated butterfly valves for reliable flow isolation and modulation in industrial process systems. Designed with a robust lug-style body and high-performance electric actuator, these valves provide bubble-tight sealing, low operating torque, accurate flow control, and seamless integration with PLC, DCS, and SCADA systems. They are widely used in water treatment, chemical processing, oil & gas, HVAC, power generation, pharmaceutical, food & beverage, and industrial automation applications.

DOWNLOAD CATALOGUE

Product Specifications and Overview

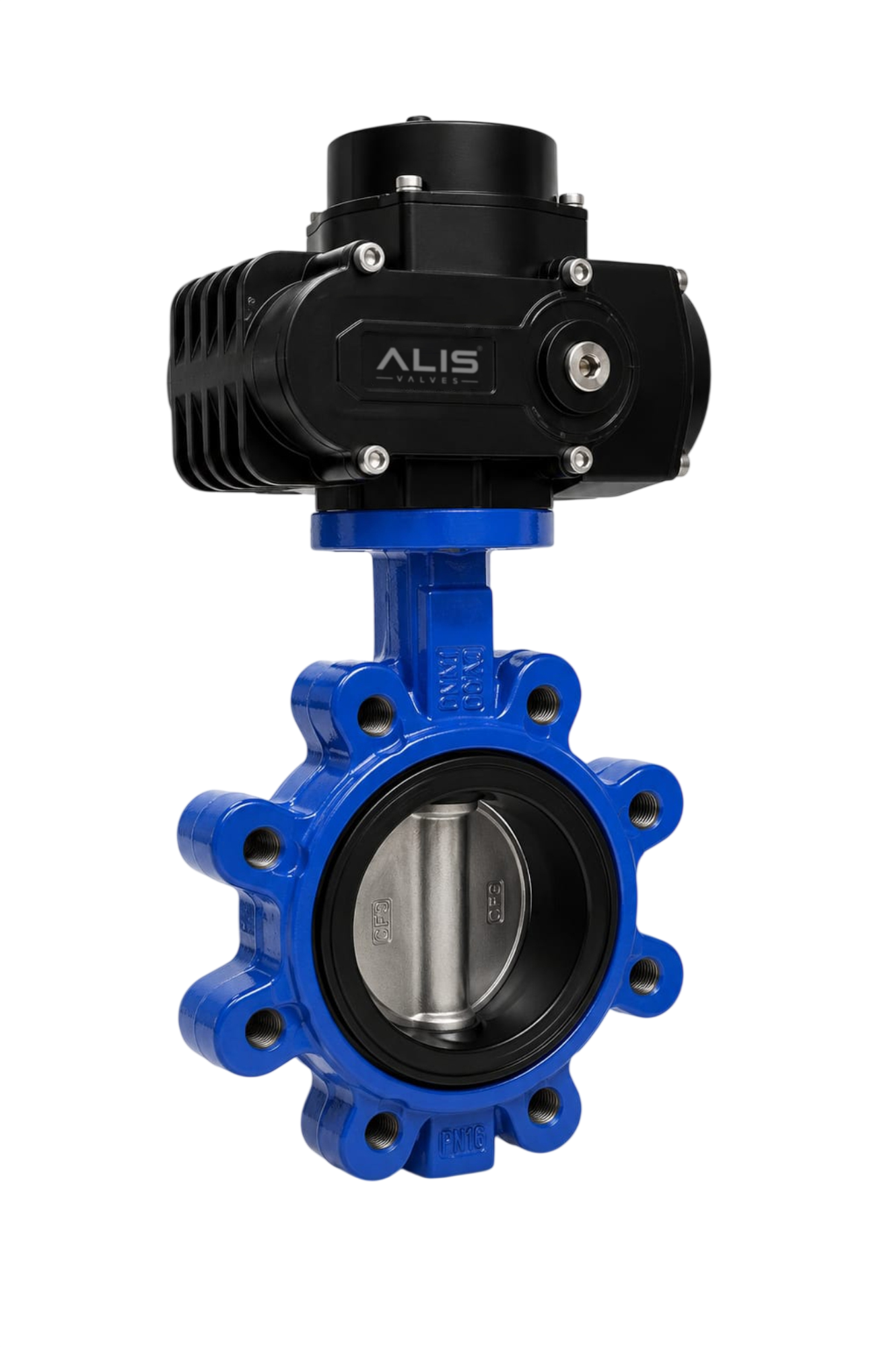

ALIS Valves offers Electric Lug Type Butterfly Valves for industrial applications requiring reliable flow regulation, shut-off and automated operation. These valves feature a rotating disc that controls fluid flow through a quarter-turn mechanism, allowing the valve to open, close or regulate flow according to system requirements. The lug-style body incorporates threaded lugs around the valve perimeter, enabling installation between compatible pipeline flanges and, in suitable configurations, allowing one side of the pipeline to be disconnected while the other remains secured. An electric actuator provides remote operation and can support integration with compatible industrial automation systems.

Electric Lug Type Butterfly Valves are suitable for applications in water treatment plants, chemical processing facilities, HVAC systems, power generation units and industrial fluid distribution networks. They can be used with compatible liquids and gases within the specified pressure and temperature limits. Important selection factors include process media, operating pressure, temperature, flow rate, valve size, body and disc materials, seat compatibility, flange drilling, actuator voltage and control requirements. Selecting the appropriate valve configuration helps support dependable shut-off, efficient flow regulation and reliable automated operation under the intended working conditions.

Size Range

DN50 to DN1200 (2" to 48")

Pressure Rating

PN10, PN16, PN25 / ANSI Class 150

Body Material

Cast Iron, Ductile Iron, Carbon Steel (WCB), SS304, SS316

Disc Material

SS304, SS316, Ductile Iron (Ni-Plated), Aluminium Bronze

Seat Material

EPDM, NBR, PTFE, Viton

End Connection

Lug Type

Actuator Type

Electric Actuator

Power Supply

24V DC, 110V AC, 230V AC, 415V AC

Control Signal

On/Off, 4–20 mA, 0–10 V, Modbus RTU (Optional)

Protection Class

IP67 / IP68

Temperature Range

-20°C to +200°C (Depending on Seat Material)

Design Standards

API 609, EN 593, ISO 5211

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

Industrial Valves for Ammonia Applications Industrial valves used in ammonia systems are selected according…

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is an Electric Lug Type Butterfly Valve?

It is a lug-style butterfly valve operated by an electric actuator for automated flow isolation and control in industrial piping systems.

Can a Lug Type Butterfly Valve Be Used for Dead-End Service?

Yes, properly rated lug-style butterfly valves can be used for dead-end service, subject to the manufacturer's pressure and installation requirements.

Who Is an Electric Lug Type Butterfly Valve Manufacturer in India?

Alis Valves manufactures and supplies Electric Lug Type Butterfly Valves for water treatment, oil & gas, chemical processing, HVAC, power, petrochemical, and other industrial applications.

How should the fail-open or fail-closed position be selected?

The required fail position depends on the process safety requirements. Standard electric actuators may not automatically move the valve to a safe position after power loss. If fail-open or fail-closed operation is required, specify an actuator with a suitable spring-return, stored-energy or other approved fail-safe mechanism.

What Is the Advantage of a Lug Type Butterfly Valve?

The lug body has threaded mounting holes around the valve, allowing it to be securely bolted to the pipeline and providing greater installation flexibility than a wafer-style design.

What Is the Difference Between Lug and Wafer Butterfly Valves?

A lug valve has threaded mounting holes and can be individually bolted to the pipeline, while a wafer valve is generally clamped between pipeline flanges using through-bolts.

How is the required actuator torque calculated for an electric lug type butterfly valve?

Actuator torque selection should be based on the valve manufacturer's torque data at the specified differential pressure, operating temperature and service conditions. The selection should also account for the manufacturer's recommended safety margin and the actuator's available output torque throughout its operating range.

How should the actuator's open and closed travel limits be set?

Set travel limits according to the valve manufacturer's instructions and actuator design. Confirm that the disc reaches the intended positions without applying excessive force to the seat or mechanical stops, and verify position feedback during commissioning.
