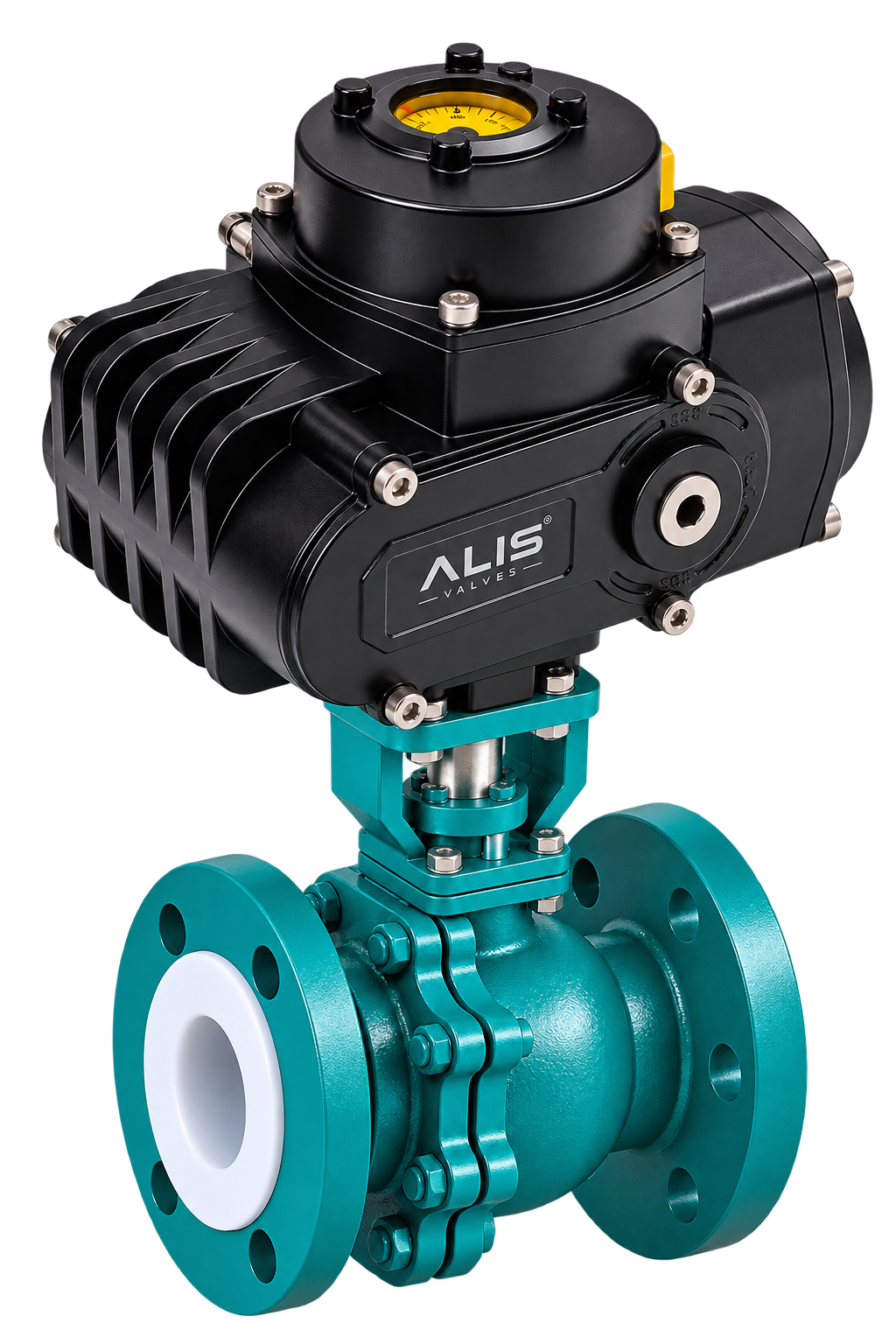

Electric PFA/PTFE Lined Ball Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted Electric PFA PTFE Lined Ball Valve Manufacturer in India, offering automated lined ball valves for corrosive chemicals, acids, alkalis, solvents, and aggressive process media. Equipped with a high-performance electric actuator and premium PFA/PTFE lining, these valves provide precise quarter-turn operation, exceptional chemical resistance, and reliable leak-tight sealing for chemical processing, pharmaceutical, water treatment, and industrial applications.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN15 to DN300 (½" to 12")

Pressure Rating

PN10, PN16 / ANSI Class 150

Body Material

Cast Iron, Ductile Iron, WCB, SS304, SS316

Lining Material

Virgin PFA / PTFE

Ball Material

SS304 / SS316 with PFA/PTFE Lining

Seat Material

PTFE / Reinforced PTFE (RPTFE)

Actuator Type

Quarter-Turn Electric Actuator

Power Supply

24V DC, 110V AC, 230V AC, 415V AC

Control Mode

On-Off / Modulating

Enclosure Protection

IP67 / IP68

Temperature Range

-20°C to +180°C (Depends on lining material)

Design Standards

API 608, ASME B16.34, ISO 5211

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is an Electric PFA/PTFE Lined Ball Valve?

It is a corrosion-resistant lined ball valve operated by an electric actuator, designed for automated isolation and flow control of aggressive chemical media.

What Is the Difference Between PFA and PTFE Lining?

Both materials provide excellent chemical resistance. PFA generally offers better mechanical and high-temperature performance, while PTFE is widely used for reliable corrosion-resistant lining applications.

Who Is an Electric PFA/PTFE Lined Ball Valve Manufacturer in India?

Alis Valves manufactures and supplies Electric PFA/PTFE Lined Ball Valves for chemical, pharmaceutical, petrochemical, and other corrosive industrial applications.

Why Is PFA/PTFE Lining Used?

PFA and PTFE provide excellent chemical resistance, protecting the valve body and internal components from corrosive process fluids.

What Is the Difference Between a Lined Ball Valve and a Standard Ball Valve?

A lined ball valve has PFA/PTFE protective lining on wetted surfaces, providing much higher resistance to corrosive media than many conventional unlined valve constructions.

How To Choose an Electric PFA/PTFE Lined Ball Valve?

Consider chemical compatibility, concentration, temperature, pressure, valve size, lining material, seat material, end connection, actuator torque, power supply, and control requirement.
