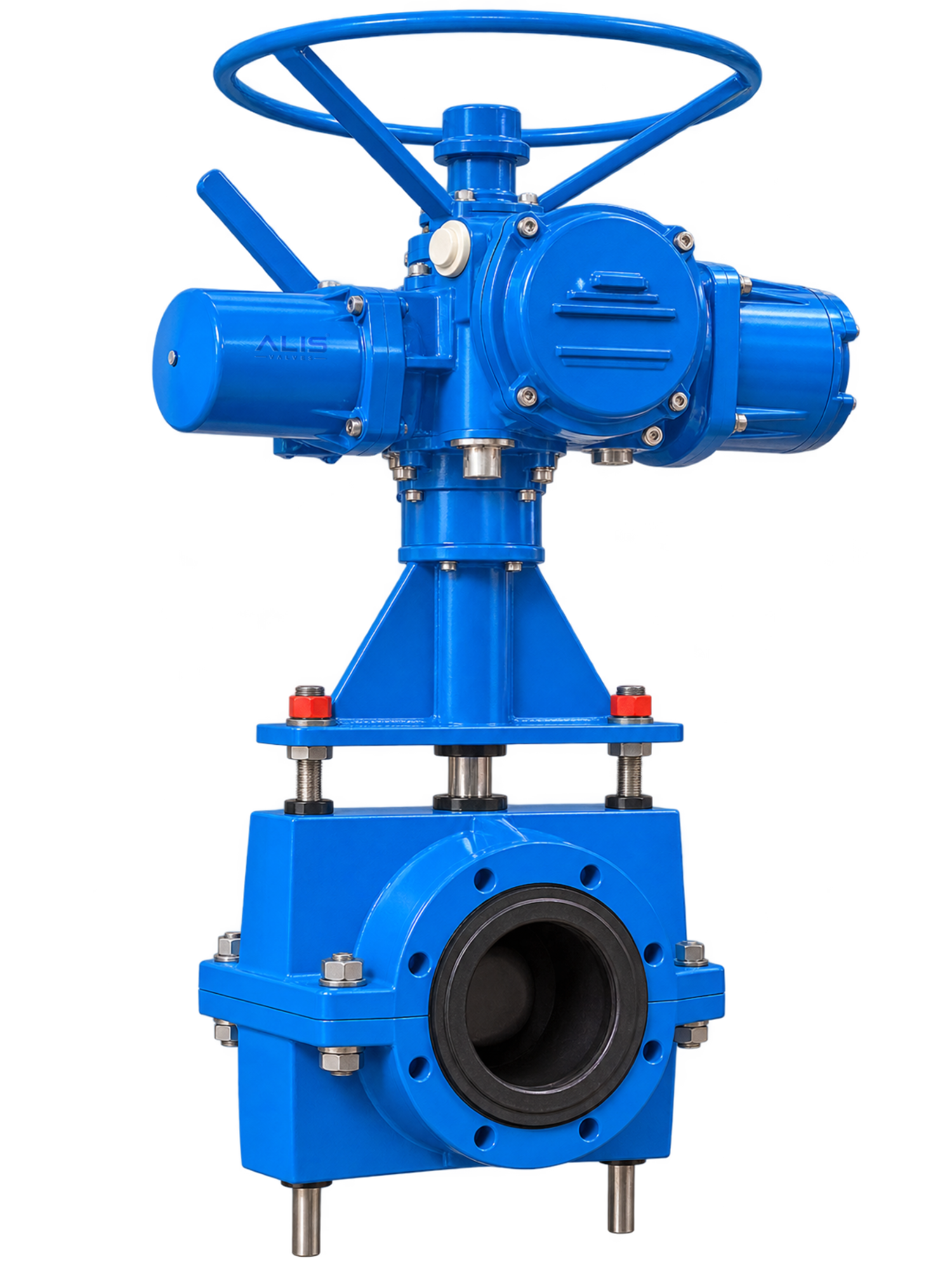

Electric Pinch Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted Electric Pinch Valve Manufacturer Supplier in India designed for automated flow control in slurry, abrasive, and corrosive applications. These valves operate using an electric actuator that compresses a flexible elastomer sleeve to regulate or shut off flow. With no direct contact between the process media and metal components, electric pinch valves ensure minimal wear, high reliability, and long service life in demanding industrial environments.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN 25 to DN 600

Pressure Rating

Up to 10 Bar (Application Dependent)

Body Material

Cast Iron / Ductile Iron / Fabricated Steel

Sleeve Material

Natural Rubber / EPDM / Nitrile / Neoprene

Actuator Type

Electric Actuator

Power Supply

24V / 110V / 230V / 415V

End Connection

Flanged

Temperature Range

-10°C to +120°C (Depends on Sleeve)

Leakage

100% Tight Shut-Off

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is an Electric Pinch Valve?

An Electric Pinch Valve is an electrically actuated valve designed to control or shut off slurry, abrasive, corrosive, viscous and solid-laden media. It operates by compressing a flexible elastomer sleeve to regulate or stop the flow.

Why Is an Electric Pinch Valve Suitable for Slurry?

The elastomer sleeve is the primary wetted component, which helps protect the valve body and operating mechanism from direct exposure to abrasive slurry. This makes pinch valves particularly suitable for mining, mineral processing and other abrasive services.

How Do You Select the Correct Sleeve Material?

The sleeve should be selected according to the chemical compatibility and mechanical conditions of the application. For abrasive slurry, abrasion-resistant rubber may be preferred, while EPDM, NBR or other elastomers may be selected for specific chemical or temperature requirements.

How Does an Electric Pinch Valve Work?

The electric actuator moves the valve's operating mechanism, which compresses the flexible sleeve. As the sleeve closes, the flow passage is progressively reduced until the valve reaches the closed position.

Can an Electric Pinch Valve Be Used for Flow Regulation?

Yes. Pinch valves can be used for both on-off isolation and flow regulation. Special control-sleeve designs can provide a useful modulating range for slurry applications.

Who Is an Electric Pinch Valve Manufacturer in India?

Alis Valves is an Electric Pinch Valve manufacturer and supplier in India, offering electrically actuated pinch valve solutions for slurry, abrasive, corrosive and solid-containing media used in mining, cement, chemical, wastewater and other industrial applications.
