Cement
Engineered valve solutions tailored for critical Cement operating processes.

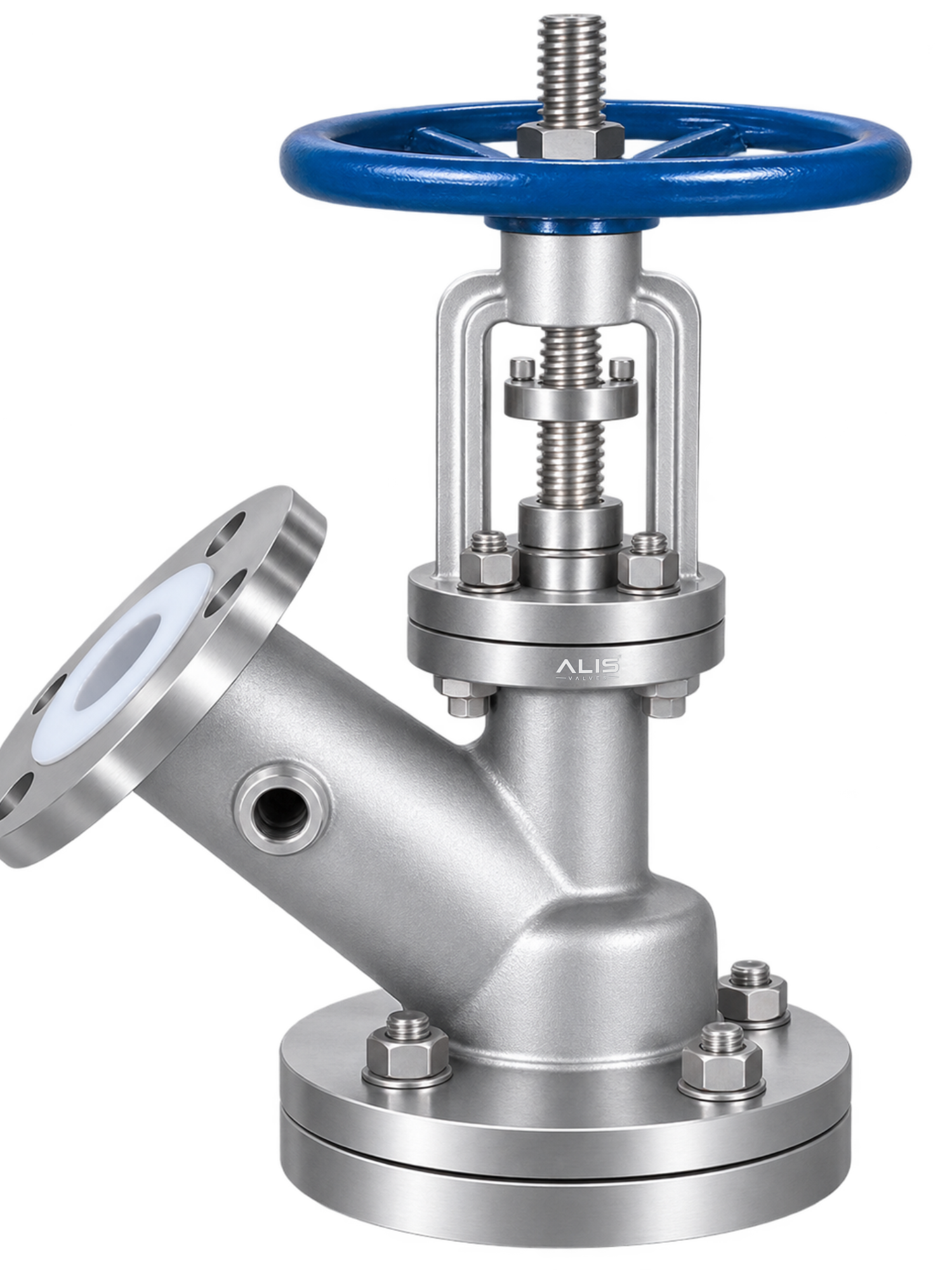

Jacketed Discharge Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Jacketed Discharge Valve Manufacturer & Supplier in India, offering high-performance valves designed for handling high-viscosity, temperature-sensitive, and crystallizing process media. Featuring an integrated steam or hot oil jacket around the valve body, these valves maintain product temperature, prevent solidification, and ensure smooth, complete discharge from tanks and process vessels. They are widely used in chemical processing, pharmaceutical, food & beverage, petrochemical, specialty chemicals, resins, polymers, bitumen, and industrial process applications.
Product Specifications and Overview
Alis Valves is a trusted Jacketed Discharge Valve Manufacturer & Supplier in India, offering high-performance valves designed for handling high-viscosity, temperature-sensitive, and crystallizing process media. Featuring an integrated steam or hot oil jacket around the valve body, these valves maintain product temperature, prevent solidification, and ensure smooth, complete discharge from tanks and process vessels. They are widely used in chemical processing, pharmaceutical, food & beverage, petrochemical, specialty chemicals, resins, polymers, bitumen, and industrial process applications.
Size Range
DN25 to DN300 (1" to 12")
Pressure Rating
PN10, PN16, PN25 / ANSI Class 150
Body Material
Carbon Steel (WCB), SS304, SS316, SS316L
Disc / Plug Material
SS304, SS316
Seat Material
PTFE, RPTFE, PEEK, Metal Seat (Application Dependent)
Jacket Medium
Steam, Hot Water, Thermal Oil
End Connection
Flanged, Butt Weld
Operation
Manual Handwheel, Pneumatic, Electric
Temperature Range
-20°C to +300°C (Depending on Seat Material)
Leakage Standard
Bubble Tight Shut-Off
Design Standards
ASME B16.34, ISO 5211, MSS SP Standards
Product Gallery
Applications
Ammonia
High-performance flow automation engineered for Ammonia operations.
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Accessories
Discharge Valve
Flush Bottom Discharge Valve
Alis Valves is a trusted Flush Bottom Discharge Valve Manufacturer & Supplier…
Discharge Valve
Tank Bottom Discharge Valve
Alis Valves is a trusted Tank Bottom Discharge Valve Manufacturer & Supplier…
Frequently Ask Questions
A Jacketed Discharge Valve is a vessel-bottom discharge valve equipped with a jacket around the valve body. A heating or cooling medium circulates through the jacket to maintain the temperature of the process material during discharge.
Its primary advantage is temperature control around the discharge area, especially for products that become difficult to discharge when they cool.
It can help reduce product retention by providing an efficient bottom discharge arrangement, particularly when properly installed at the lowest point of the vessel.
The jacket helps prevent the product from:
Solidifying
Crystallizing
Becoming excessively viscous
Blocking the discharge passage
It can also help maintain a consistent discharge temperature.
Alis Valves is a Jacketed Discharge Valve manufacturer and supplier in India, providing discharge solutions for chemical, pharmaceutical, API, resin, polymer, food and specialty-process industries where maintaining product temperature is important for reliable vessel emptying.
It can facilitate maximum practical vessel drainage, but actual drainability depends on:
Vessel geometry
Outlet location
Product viscosity
Valve design
Installation arrangement
