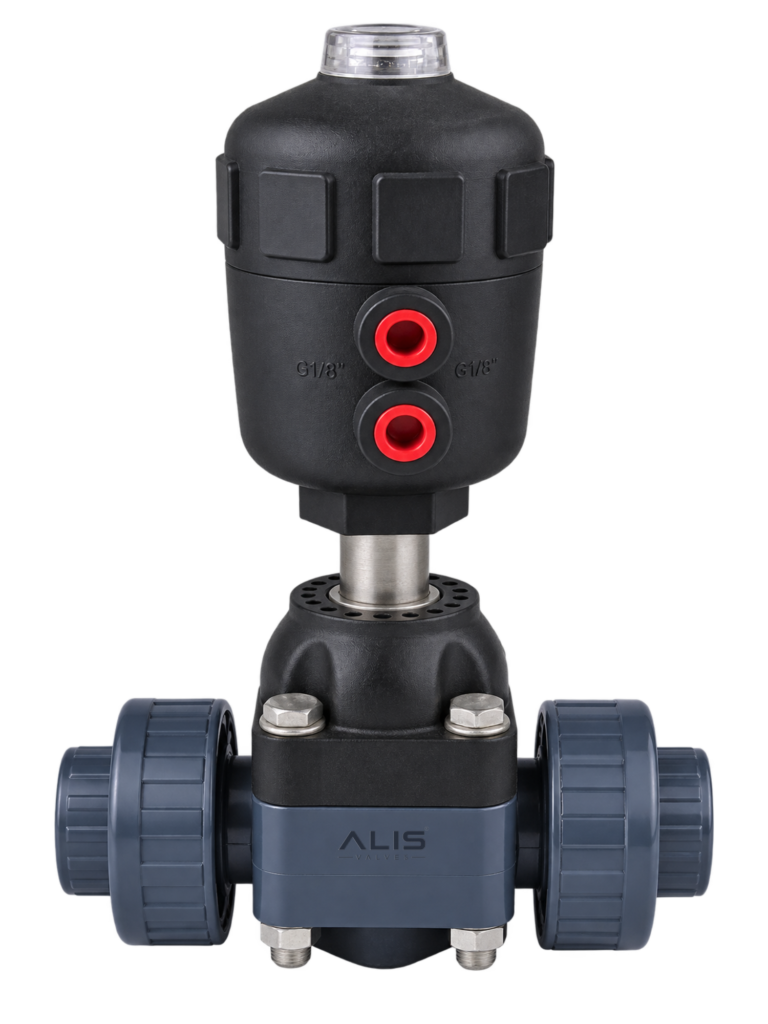

Pneumatic UPVC Flanged Diaphragm Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Pneumatic UPVC Flanged Diaphragm Valve is designed for reliable and automated on-off isolation and flow control of corrosive fluids in industrial piping systems. Its UPVC body provides excellent resistance to many chemicals and corrosive media, while the flanged connection offers secure installation in industrial pipelines. The pneumatic actuator enables fast, remote and automated operation, making it suitable for chemical processing, water treatment, wastewater, electroplating and other corrosive-fluid applications.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Body Material

UPVC

Function

On-Off / Flow Control

End Connection

Flanged

Temperature Rating

Material Dependent

Sealing

Diaphragm Shut-Off

Operation

Pneumatic

Diaphragm Material

EPDM / PTFE (Application Dependent)

Pressure Rating

Application Dependent

Control

Normally Open / Normally Closed (Configuration Dependent)

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a Pneumatic UPVC Flanged Diaphragm Valve?

A Pneumatic UPVC Flanged Diaphragm Valve is an automatically operated diaphragm valve with a UPVC body and flanged connections, designed for controlling and isolating water, chemicals and compatible corrosive fluids.

What Is the Advantage of a Flanged Connection?

A flanged connection provides a secure and easily removable connection to industrial piping systems and is particularly useful where regular maintenance or equipment disassembly may be required.

Can the Diaphragm Be Replaced?

Yes. The diaphragm can generally be replaced during maintenance without replacing the complete valve body.

How Does a Pneumatic UPVC Flanged Diaphragm Valve Work?

Compressed air operates the pneumatic actuator, which moves the diaphragm to open or close the valve. The diaphragm separates the process fluid from the valve's operating mechanism.

Why Use a Diaphragm Valve for Corrosive Media?

The diaphragm creates a barrier between the process media and internal operating components, helping protect the valve mechanism from direct exposure to the fluid.

Who Is a Pneumatic UPVC Flanged Diaphragm Valve Manufacturer in India?

Alis Valves is a Pneumatic UPVC Flanged Diaphragm Valve manufacturer and supplier in India, providing corrosion-resistant automated valve solutions for chemical processing, water treatment, wastewater, electroplating, fertilizer and industrial fluid-handling applications.
