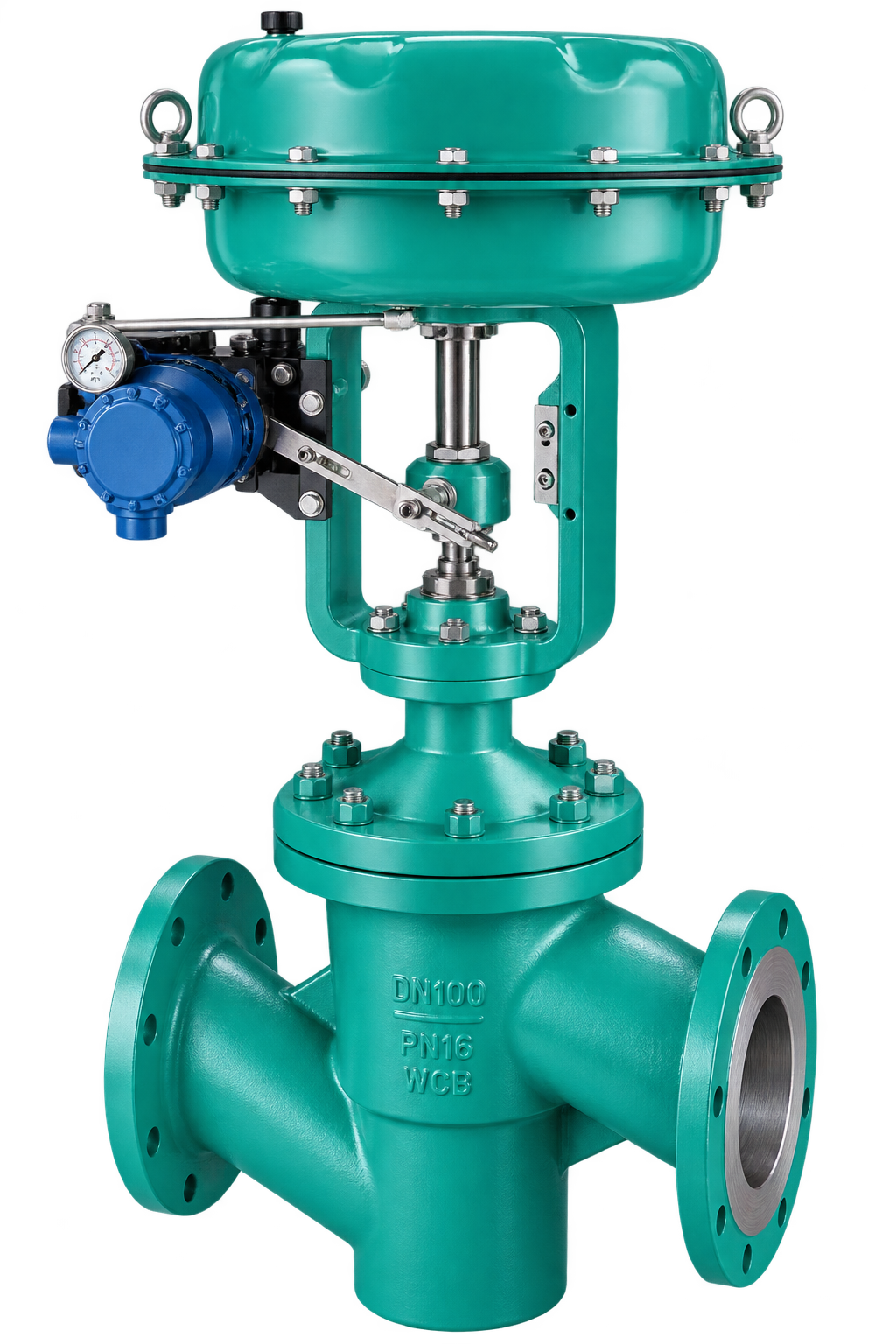

PFA/PTFE Lined Control Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted PFA/PTFE Lined Control Valve Manufacturer in India, offering high-performance control valves for highly corrosive and aggressive chemical applications. Engineered with a premium PTFE-lined body and precision control trim, these valves provide outstanding corrosion resistance, accurate flow regulation, reliable shut-off, and long service life. They are ideal for handling acids, alkalis, solvents, and aggressive chemicals in chemical processing, pharmaceutical, fertilizer, water treatment, and industrial process systems.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN15 to DN300 (½" to 12")

Pressure Rating

PN16, PN25, PN40 / ANSI Class 150 & 300

Body Material

Cast Steel (WCB), SS304, SS316 with PTFE Lining

Lining Material

Virgin PTFE

Trim Material

PTFE Lined SS304 / SS316

Seat Material

PTFE

End Connection

Flanged

Actuation

Pneumatic, Electric

Control Signal

4–20 mA, 0–10 V

Temperature Range

-20°C to +180°C

Leakage Class

ANSI Class IV, V, VI (As Required)

Design Standards

IEC 60534, ASME B16.34, ISA S75

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a PTFE Lined Control Valve?

A PTFE Lined Control Valve is a control valve whose process-contact surfaces are protected with PTFE (Polytetrafluoroethylene) to provide corrosion resistance while regulating the flow of aggressive process fluids.

What Is the Main Advantage of a PTFE Lined Control Valve?

The major advantage is corrosion resistance combined with automatic flow control. It allows a control valve to be used in applications where an unlined metal valve may not provide adequate chemical resistance.

Can the Plug Also Be PTFE Lined?

Yes. Depending on the design, the plug and seat can be provided with PTFE or other fluoropolymer materials.

Why Is PTFE Lining Used?

PTFE is used because it has excellent resistance to a wide range of acids, alkalis and other corrosive chemicals. It protects the underlying valve body from direct contact with the process media.

Who Is a PTFE Lined Control Valve Manufacturer in India?

Alis Valves manufactures and supplies industrial PTFE-lined valves for corrosive and chemically aggressive process applications, including PTFE/PFA/FEP/ETFE/PVDF-lined valve solutions.
