Stainless Steel Pneumatic Actuator
Resistant
Sealing
Operation
Long Life

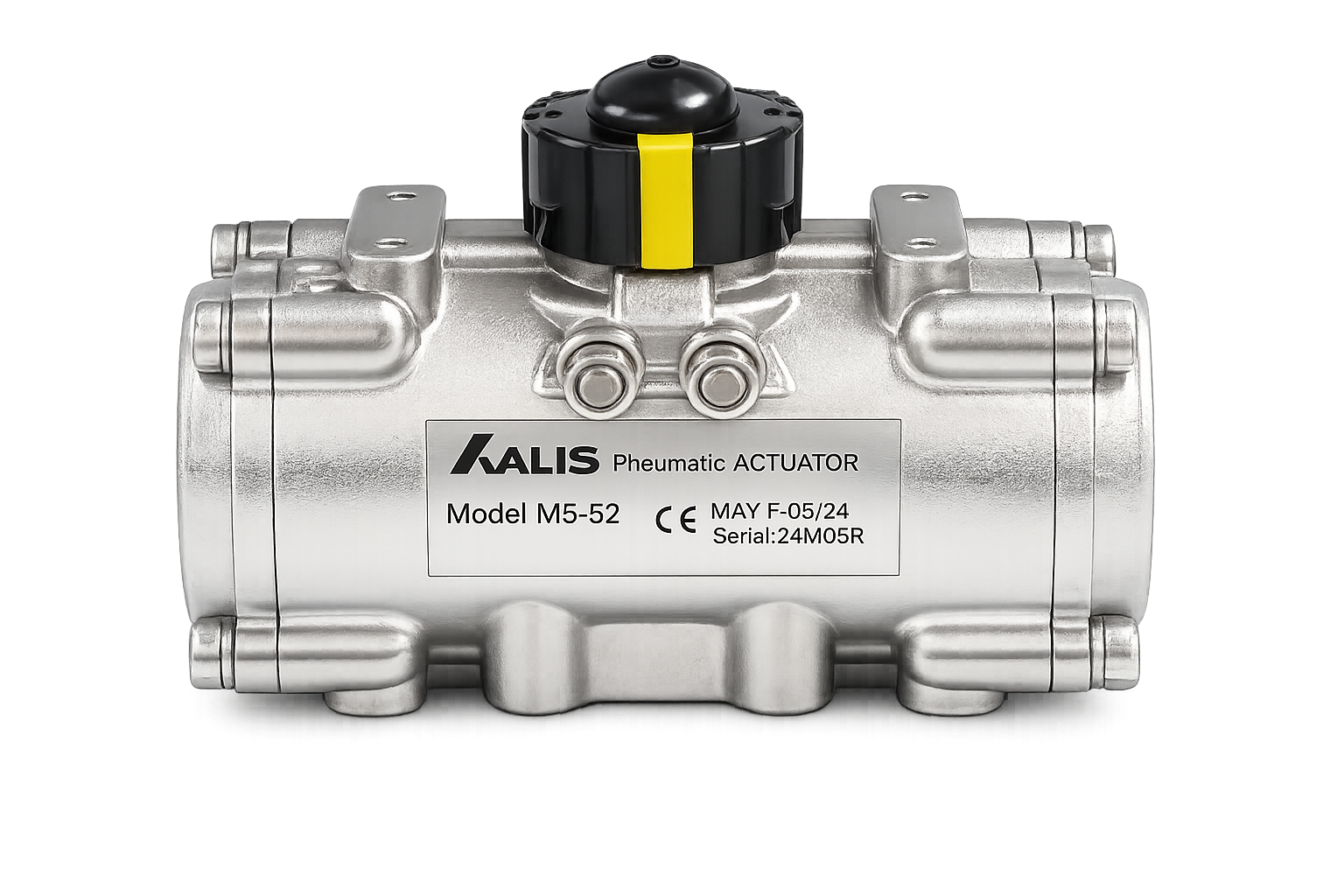

A Stainless Steel Pneumatic Actuator is a corrosion-resistant quarter-turn actuator designed to automate ball valves, butterfly valves, and plug valves in harsh industrial environments. Manufactured from high-grade stainless steel, it offers reliable performance, fast operation, and excellent resistance to moisture, chemicals, and corrosive media. It is ideal for industries such as chemical processing, pharmaceuticals, food & beverage, marine, oil & gas, and water treatment.
Specifications
Operation
Pneumatic
Action
Double Acting / Spring Return
Body Material
Stainless Steel SS304 / SS316
Piston Material
Aluminum / Stainless Steel
Air Supply Pressure
Typically 3–8 Bar
Temperature Range
Typically -20°C to +80°C
Fail-Safe Option
Fail Open / Fail Close
Mechanism
Rack & Pinion
Output Motion
Rotary, 90°
End Cap Material
Stainless Steel
Shaft Material
Stainless Steel
Rotation Angle
90° / Adjustable
Torque Range
Model & Application Dependent
Control Accessories
Solenoid Valve / Limit Switch / Positioner / AFR
Product Images
Frequently Ask Questions
A stainless steel pneumatic actuator uses compressed air to generate rotary motion for automatic valve operation. Its stainless steel construction provides excellent corrosion resistance.
SS316 generally provides better resistance to chlorides and aggressive chemicals than SS304. The appropriate grade depends on the operating environment.
Yes. Stainless steel construction makes these actuators suitable for hygienic environments, particularly when the required material grade and surface finish are specified.
They are used to automate ball, butterfly and plug valves in corrosive, hygienic, and demanding industrial applications.
Alis Valves manufactures and supplies stainless steel pneumatic actuators for industrial valve automation with different torque ranges, materials, and control configurations.
Most industrial pneumatic actuators operate within approximately 3–8 bar, depending on the actuator model and required torque.
