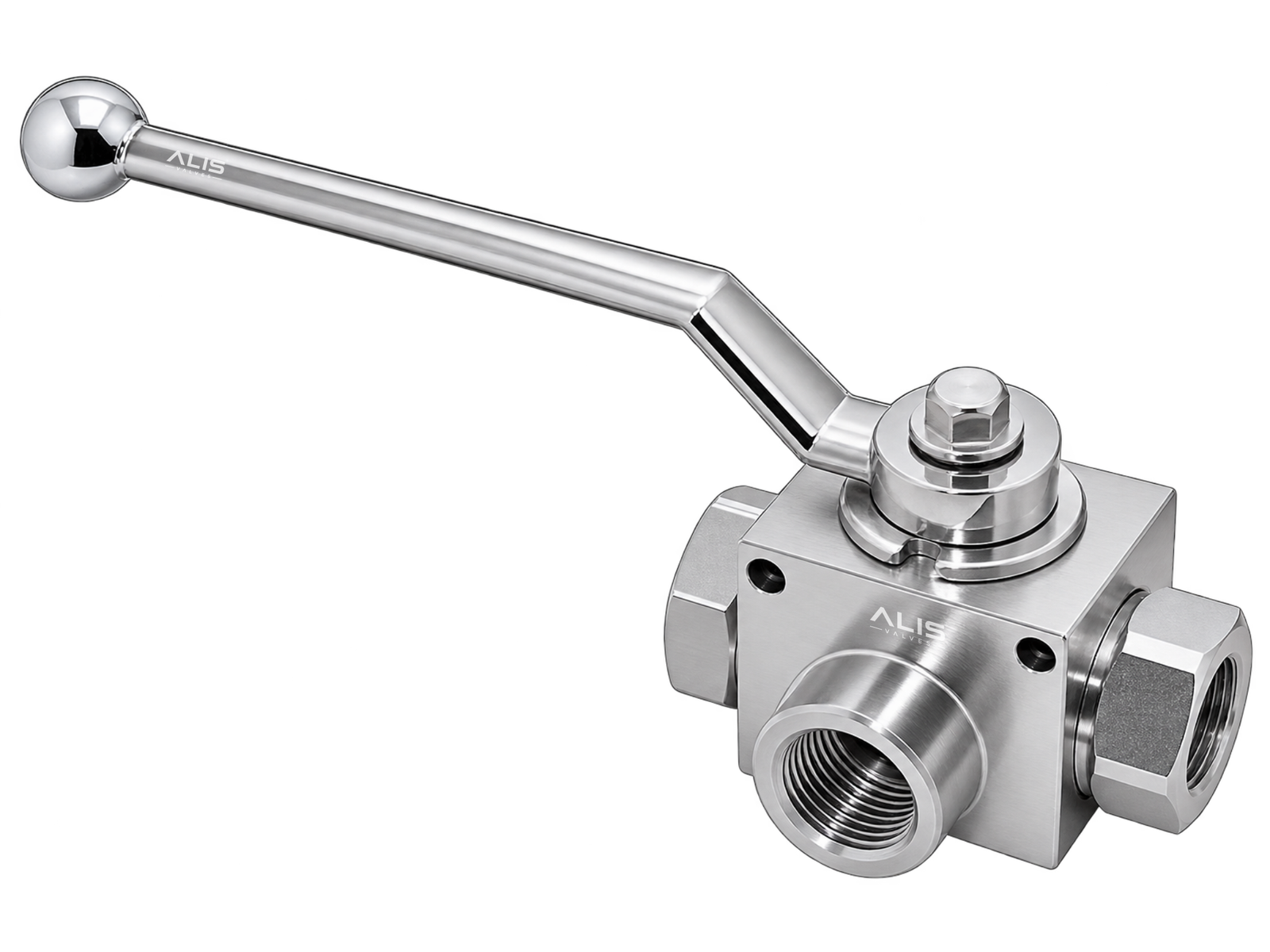

3-Way T Port Ball Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted 3-Way T Port Ball Valve Manufacturer and Supplier in India, offering precision-engineered multi-port ball valves for flow diversion, mixing, and distribution in industrial piping systems. Designed with a T-shaped ball port, these valves enable multiple flow configurations while providing reliable sealing, low operating torque, and dependable performance in chemical, water treatment, oil & gas, pharmaceutical, and process industries.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN15 to DN300 (½" to 12")

Pressure Rating

ANSI Class 150, 300 & 600 / PN16, PN25, PN40

Body Material

WCB, CF8, CF8M, SS304, SS316

Ball Material

SS304, SS316

Seat Material

PTFE, RPTFE, PEEK

End Connection

Flanged, Threaded, Socket Weld, Butt Weld

Temperature Range

-20°C to +200°C (Depends on seat material)

Design Standards

API 608, ASME B16.34, ISO 5211

Port Configuration

T-Port (Mixing & Diverting)

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a 3-Way T-Port Ball Valve?

A 3-Way T-Port Ball Valve has a T-shaped passage through the ball, allowing flow to be directed between multiple ports for diversion, distribution, or selected mixing arrangements.

What Is the Main Advantage of a T-Port Ball Valve?

The T-port configuration provides more flow-path combinations than an L-port design, making it useful for applications requiring flexible three-way flow control.

Who Is a 3-Way T-Port Ball Valve Manufacturer in India?

Alis Valves manufactures and supplies 3-Way T-Port Ball Valves for flow mixing, diversion, distribution, and automated process applications.

What Are T-Port Ball Valves Used For?

They are commonly used for flow diversion, flow distribution, mixing, and routing in industrial process pipelines.

Can It Be Used to Split One Flow into Two Lines?

Yes. A T-port ball valve can be configured to divide one incoming flow into two connected outlet paths, depending on the required flow arrangement.

Can It Be Used for Automated Flow Distribution?

Yes. With a suitable actuator and control system, it can provide automated flow routing and distribution between connected pipelines.
