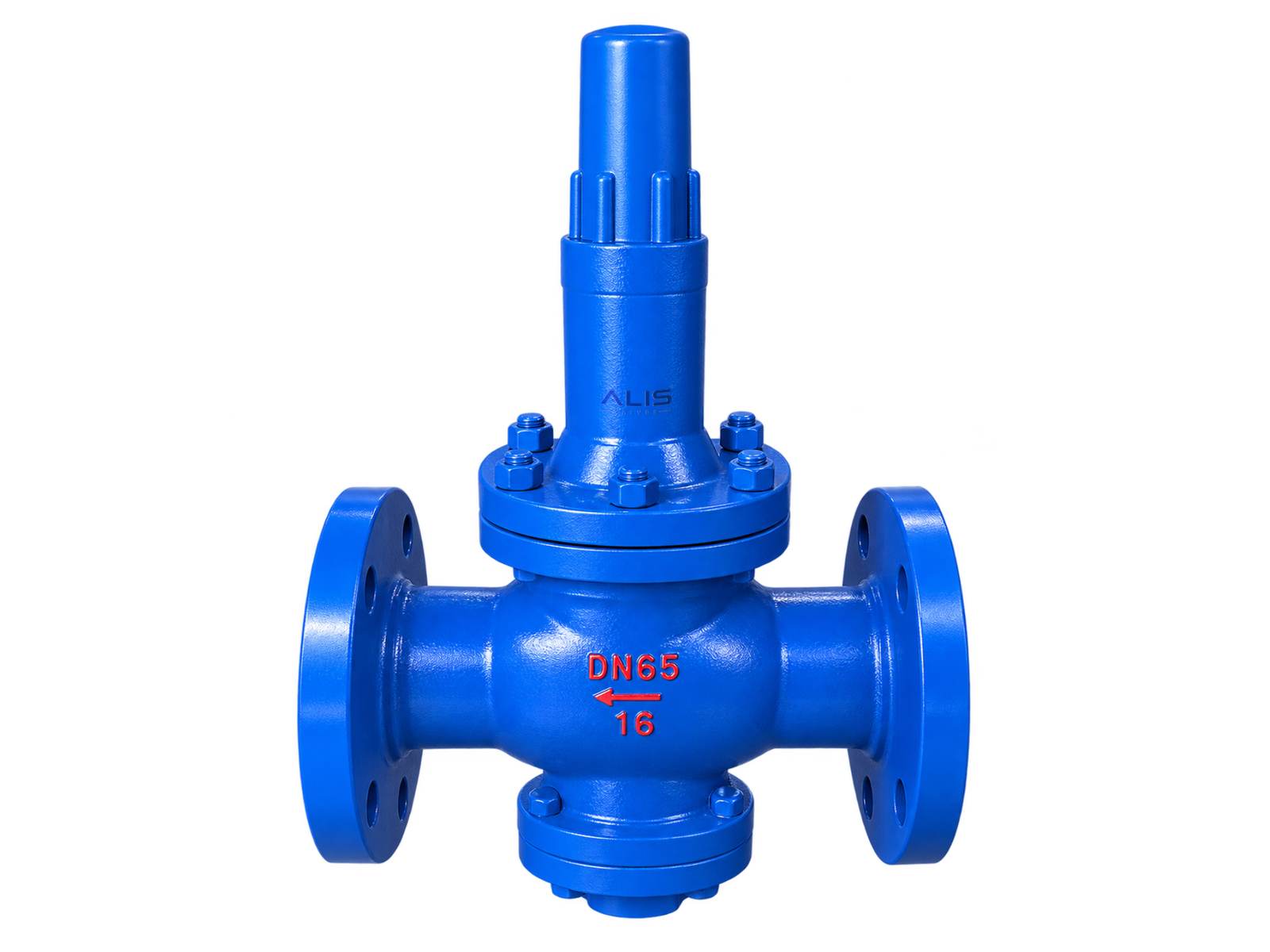

Direct Acting Pressure Reducing Valve (PRV)
Resistant
Sealing
Operation
Long Life
Alis Valves offers Direct Acting Pressure Reducing Valves (PRV) designed to automatically reduce and maintain downstream pressure without the need for external power. These valves use a spring-loaded mechanism that directly controls the outlet pressure, ensuring quick and stable performance. Ideal for low to medium flow applications, direct acting PRVs are widely used in water, air, steam, and gas systems where compact size and quick response are required.
Specifications
Size Range
DN 15 to DN 150
Body Material
Brass / Cast Steel / Stainless Steel
End Connection
Screwed / Flanged
Pressure Range
Adjustable Outlet Pressure
Media
Water, Air, Steam, Gas
Pressure Rating
PN 10 to PN 40
Seat Material
SS / PTFE
Operation
Self-Actuated (No Power Required)
Temperature Range
Up to 250°C (Depends on Material)
