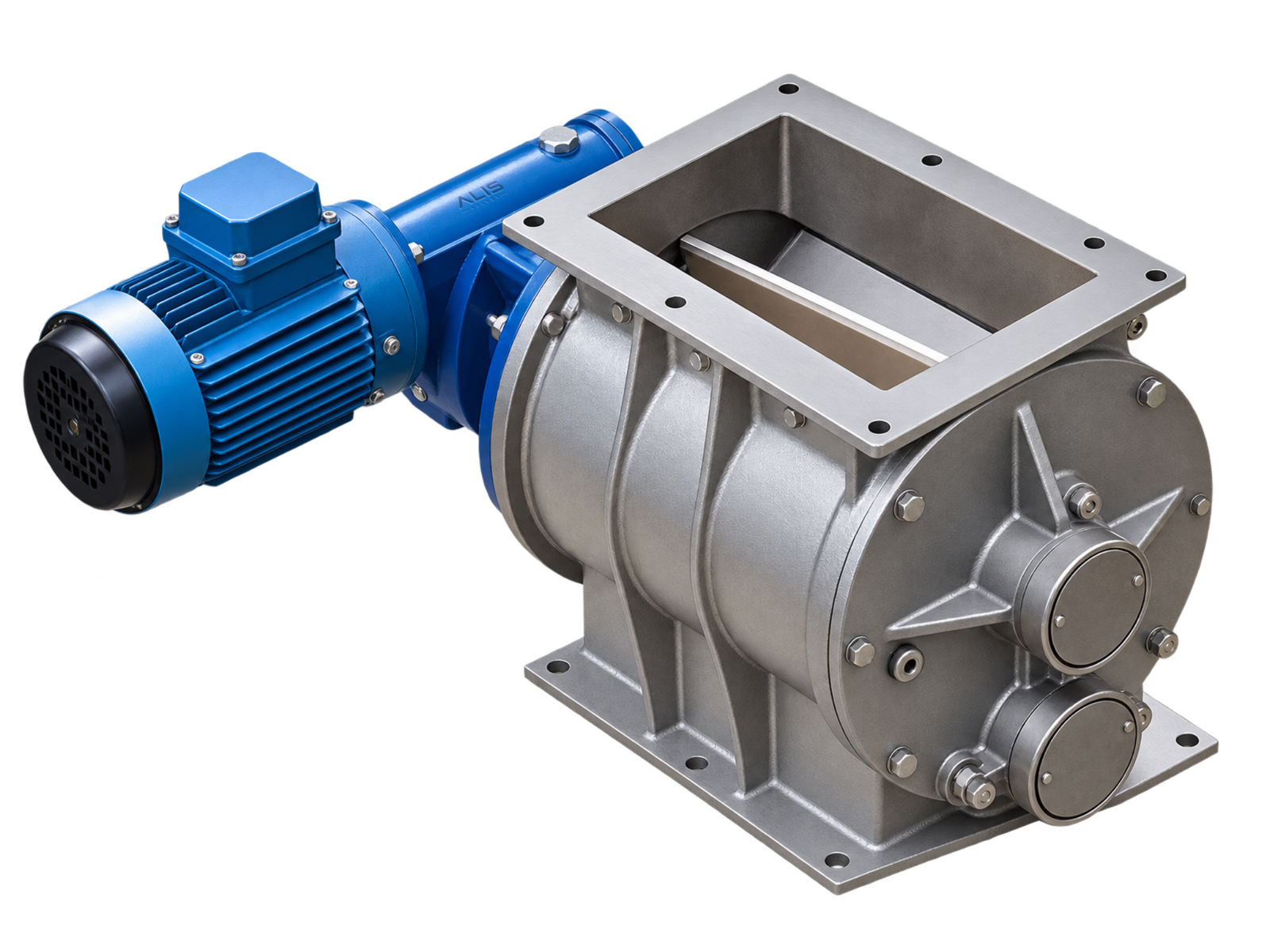

Drop Through Rotary Valve

Corrosion
Resistant
Leak Tight
Sealing
Automated
Operation
Low Maintenance
Long Life

Alis Valves offers Drop Through Rotary Valve Manufacturer Supplier in India designed for efficient discharge of bulk materials under gravity while maintaining an effective airlock seal. In this design, material drops vertically through the rotor pockets, making it ideal for applications where controlled feeding and air leakage prevention are critical.Widely used in pneumatic conveying and dust collection systems, these valves ensure consistent material flow, minimal air loss, and reliable operation across various industrial processes.

DOWNLOAD CATALOGUE
Drop Through Rotary Valve

Product Specifications and Overview

Alis Valves offers Drop Through Rotary Valve Manufacturer Supplier in India designed for efficient discharge of bulk materials under gravity while maintaining an effective airlock seal. In this design, material drops vertically through the rotor pockets, making it ideal for applications where controlled feeding and air leakage prevention are critical.Widely used in pneumatic conveying and dust collection systems, these valves ensure consistent material flow, minimal air loss, and reliable operation across various industrial processes.

Size Range

100 NB to 600 NB (Custom sizes available)

Body Material

Cast Iron / Cast Steel / Stainless Steel

Rotor Material

Carbon Steel / Stainless Steel

Drive Type

Geared Motor / Chain Drive

Sealing Type

Close Clearance Airlock

Pressure Handling

Low to Medium Pressure Systems

Temperature Range

Up to 250°C (Depends on Design)

Application Media

Powder, Dust, Granules

Mounting

Flanged

Operation

Flanged

Download GAD Drawing
Drop Through Rotary Valve

Product Gallery

Drop Through Rotary Valve

Industries Served

Cement

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

A Drop Through Rotary Valve is a rotary feeder or airlock valve used for the controlled discharge of powders, granules and dry bulk materials. Material enters from the top and drops through rotating rotor pockets to the outlet.
It is called Drop Through because the material moves essentially straight from the upper inlet through the rotating pockets and drops out through the lower discharge.
Alis Valves is a Drop Through Rotary Valve manufacturer and supplier in India, offering rotary feeding and airlock solutions for cement, chemical, fly ash, mineral, food, pharmaceutical and other bulk-material handling applications.
Yes. A suitable drop-through rotary valve can be used as an airlock or feeder in pneumatic conveying systems, particularly where the conveying arrangement permits bottom discharge.
Material enters the valve through the inlet and fills the rotor pockets. As the rotor rotates, the pockets carry the material to the bottom outlet, where it is discharged continuously.
They are closely related, but the terms describe slightly different application concepts. A drop-through rotary valve emphasizes the material-flow arrangement, while a rotary airlock emphasizes pressure separation between the inlet and outlet. A drop-through design can therefore function as a rotary airlock when properly designed for differential-pressure service.
A Slide Gate Valve provides isolation by moving a gate across the flow passage. A Drop Through Rotary Valve provides continuous or controlled material feeding through rotating pockets. Therefore, a slide gate is primarily an isolation device, while a rotary valve is primarily a feeding/discharge device.
