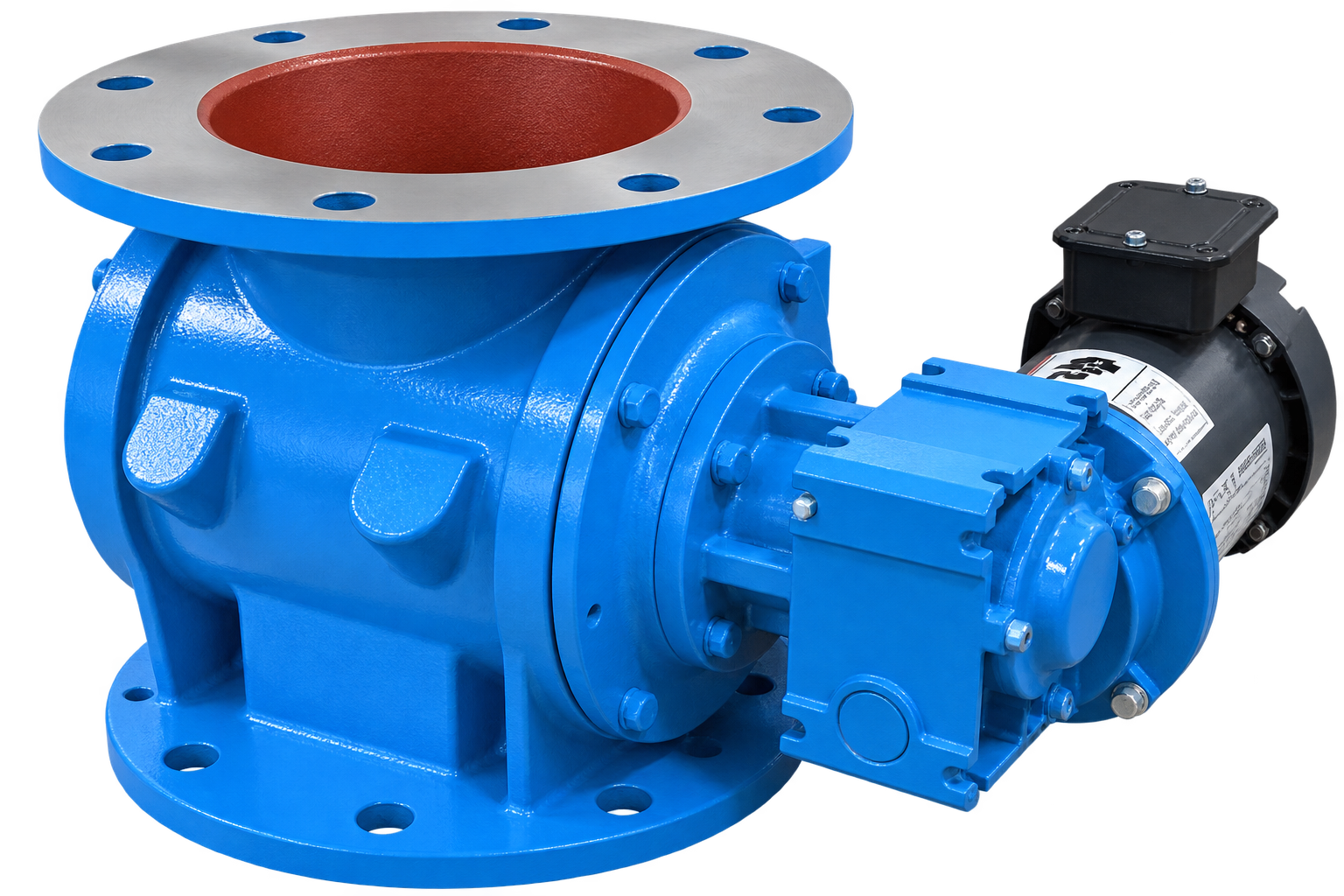

Standard Rotary Airlock Valve
Resistant
Sealing
Operation
Long Life
Alis Valves offers high-quality Standard Rotary Airlock Valves designed for controlled discharge of bulk materials while maintaining an effective airlock seal. These valves are widely used in pneumatic conveying systems to transfer powders, granules, and bulk solids without pressure loss or air leakage.Standard Rotary Airlock ValveEngineered for durability and smooth operation, rotary airlock valves ensure consistent material flow and efficient system performance in various industrial applications.
Specifications
Size Range
100 NB to 600 NB (Custom sizes available)
Rotor Material
Carbon Steel / Stainless Steel
Sealing Type
Close Clearance / Airlock Sealing
Application Media
Powder, Granules, Dust
Operation
Continous
Body Material
Cast Iron / Cast Steel / Stainless Steel
Drive Type
Geared Motor / Chain Drive
Temperature Range
Up to 250°C (Depends on Design)
Mounting
Flanged / Direct Mount
Product Images
Frequently Ask Questions
A Standard Rotary Airlock Valve is a rotary feeder used to continuously discharge powders, granules and dust while maintaining an effective seal between areas operating at different pressures.
Its main functions are:
Controlled material feeding
Continuous discharge
Airlock/pressure separation
Reduction of unwanted air leakage
Integration with pneumatic conveying systems
A Standard Rotary Airlock Valve is a general-purpose rotary airlock used for controlled discharge and pressure separation.
A Drop Through Rotary Valve emphasizes the direct downward flow of material from the upper inlet through the rotor to the lower outlet.
Material enters the valve through the inlet and fills the pockets of the rotating rotor. As the rotor turns, the material is carried toward the outlet and discharged continuously.
The close-clearance arrangement helps limit air movement between the inlet and outlet.
Alis Valves is a Standard Rotary Airlock Valve manufacturer and supplier in India, offering rotary airlock solutions for pneumatic conveying, cement, fertilizer, chemical, fly ash, dust collection and bulk-material handling applications.
