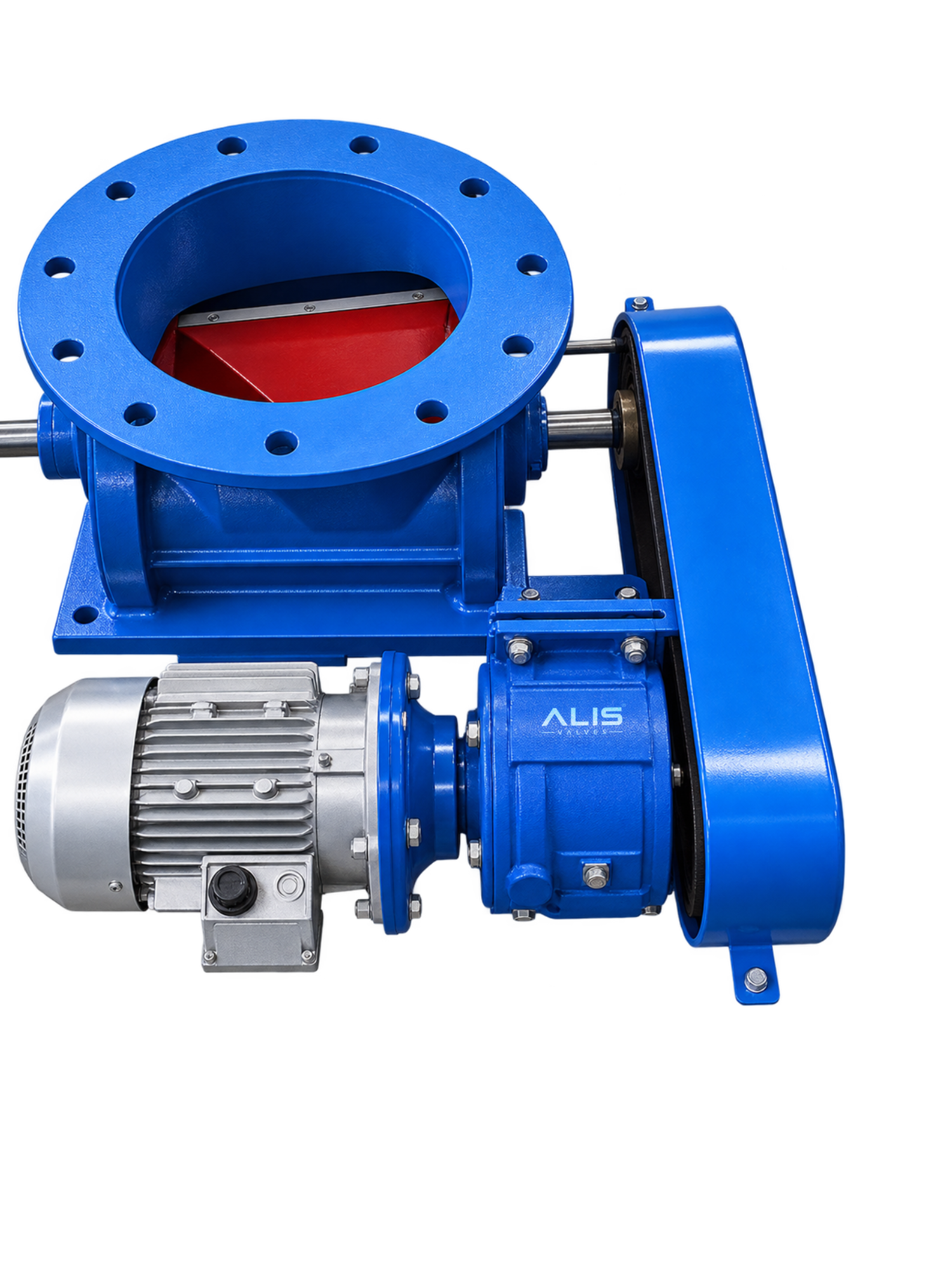

Blow Through Rotary Valve
Resistant
Sealing
Operation
Long Life
Alis Valves offers Blow Through Rotary Valves specially designed for pneumatic conveying systems where material is directly fed into the conveying air stream. Unlike standard rotary airlock valves, this design allows high-pressure air to pass through the valve, enabling efficient transport of bulk materials over long distances Engineered for continuous operation, these valves ensure uniform feeding, minimal air loss, and reliable performance in demanding industrial environments handling powders, dust, and granules.
Specifications
Size Range
100 NB to 500 NB (Custom available)
Rotor Material
Hardened Steel / Stainless Steel
Sealing Type
Close Clearance / Airlock
Temperature Range
Up to 300°C (Design Dependent)
Mounting
Mounting
Body Material
Cast Iron / Cast Steel / Stainless Steel
Drive Type
Geared Motor / Direct Drive
Pressure Handling
Suitable for Medium to High Pressure
Application Media
Powder, Dust, Granules
Product Images
Frequently Ask Questions
A Blow Through Rotary Valve is a rotary airlock feeder designed to continuously feed powders and granules into a pneumatic conveying system while allowing conveying air to pass through the valve with the material.
It is called a Blow Through Rotary Valve because conveying air passes through the valve outlet and carries the material directly into the pneumatic conveying line.
Alis Valves is a Blow Through Rotary Valve manufacturer and supplier in India, offering rotary airlock and bulk-material handling solutions for pneumatic conveying, cement, chemical, mineral, fly ash and other powder-handling applications.
Material enters the rotor pockets from the inlet. The rotating rotor carries the material toward the outlet, where conveying air assists in blowing the material into the downstream pipeline.
They are closely related. A blow-through rotary valve is a specialized rotary airlock feeder designed specifically for applications where conveying air passes through the discharge side to transport the material.
