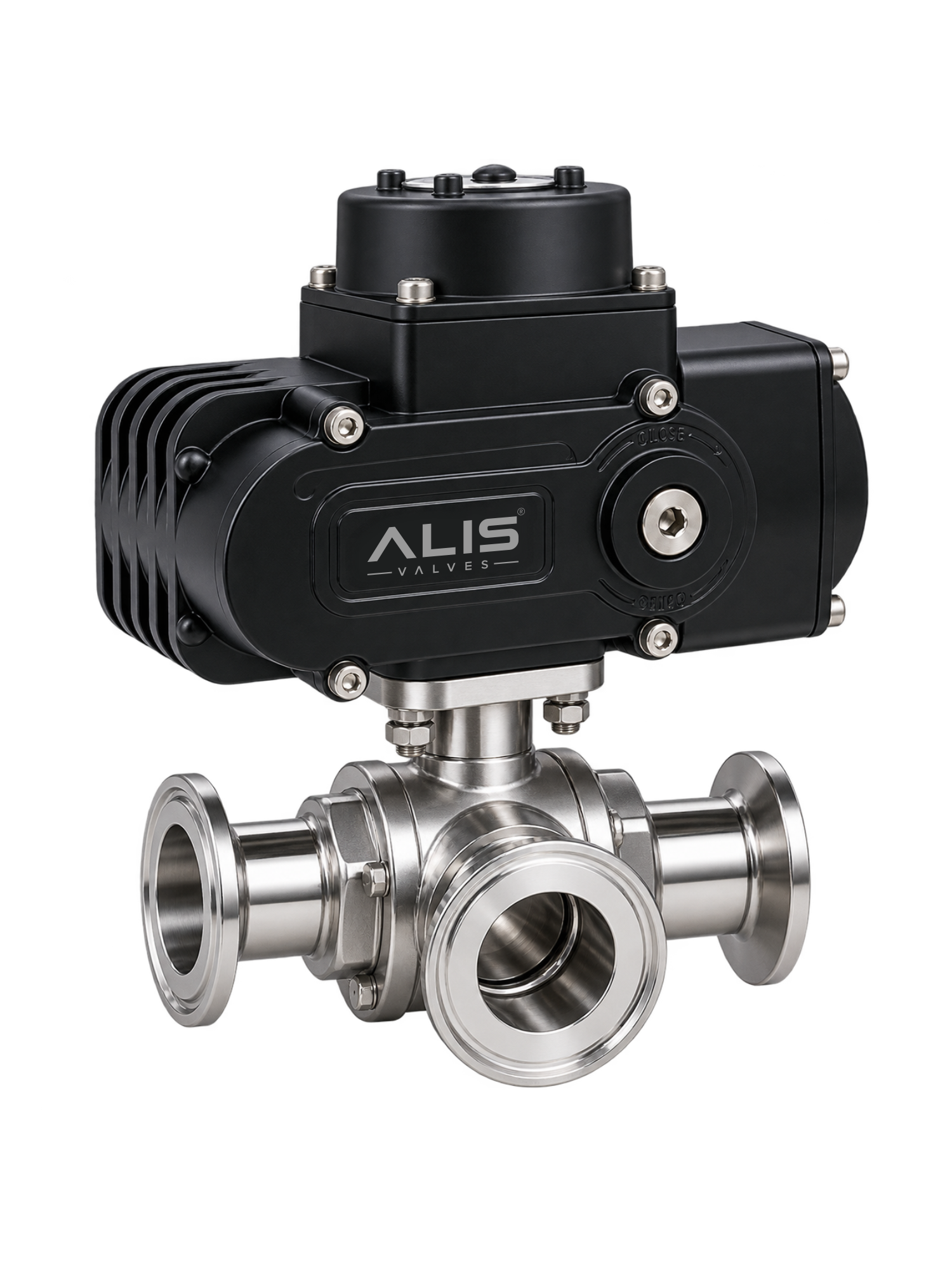

Electric 3 Way TC End Ball Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Electric 3 Way TC End Ball Valve Manufacturer in India, offering hygienic automated ball valves for flow diversion, mixing, and distribution in sanitary process systems. Designed with Tri-Clamp (TC) end connections and a high-performance electric actuator, these valves provide precise quarter-turn operation, leak-tight sealing, and contamination-free flow control for food, beverage, dairy, pharmaceutical, biotechnology, and cosmetic industries.
Product Specifications and Overview
Alis Valves is a trusted Electric 3 Way TC End Ball Valve Manufacturer in India, offering hygienic automated ball valves for flow diversion, mixing, and distribution in sanitary process systems. Designed with Tri-Clamp (TC) end connections and a high-performance electric actuator, these valves provide precise quarter-turn operation, leak-tight sealing, and contamination-free flow control for food, beverage, dairy, pharmaceutical, biotechnology, and cosmetic industries.
Size Range
DN15 to DN100 (½" to 4")
Pressure Rating
PN10 / PN16
Body Material
SS304, SS316, SS316L
Ball Material
SS316 / SS316L
Seat Material
PTFE / RPTFE
End Connection
Tri-Clamp (TC End)
Surface Finish
Mirror Polish ≤ Ra 0.8 µm (Optional: Ra 0.4 µm)
Actuator Type
Quarter-Turn Electric Actuator
Power Supply
24V DC, 24V AC, 110V AC, 230V AC
Enclosure Protection
IP67 / IP68
Temperature Range
-20°C to +180°C (Depends on seat & seal material)
Design Standards
ASME BPE, ISO 5211, FDA Compliant Materials (Optional)
Product Gallery
Applications
Ammonia
High-performance flow automation engineered for Ammonia operations.
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Frequently Ask Questions
It is a three-port sanitary ball valve with Tri-Clamp connections and an electric actuator for automated flow diversion, routing, and distribution.
Alis Valves manufactures and supplies Electric 3-Way TC End Ball Valves for food, dairy, pharmaceutical, beverage, chemical, and other hygienic process applications.
Tri-Clamp connections provide a compact, hygienic, and easily removable connection, making them particularly suitable for sanitary processing.
Yes. Hygienic configurations using SS316/316L and suitable sealing materials can be selected for pharmaceutical and biotechnology processes.
