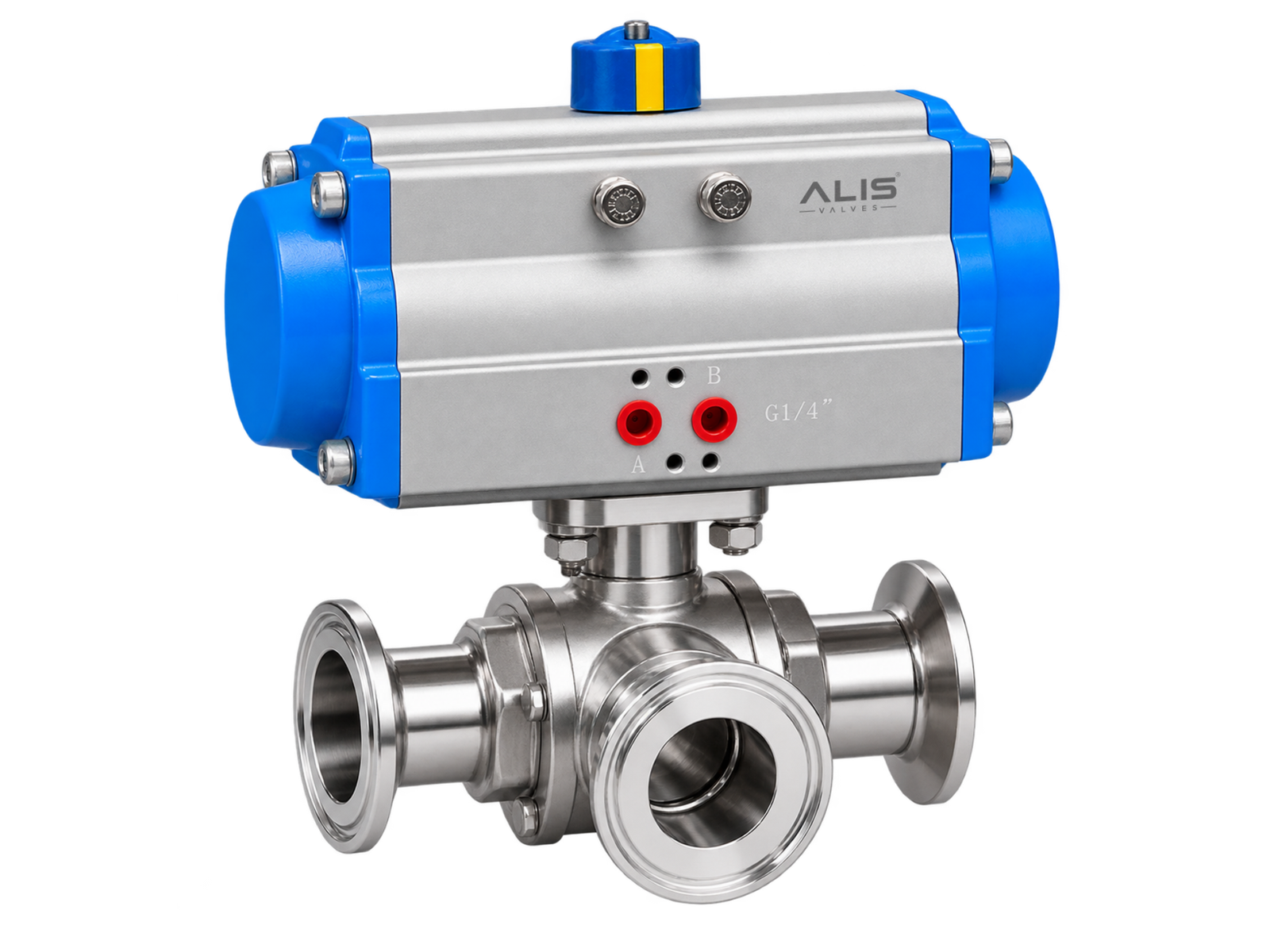

Pneumatic 3 Way TC End Ball Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Pneumatic 3 Way TC End Ball Valve Manufacturer in India, offering hygienic automated ball valves for flow diversion, mixing, and distribution in sanitary process systems. Designed with Tri-Clamp (TC) end connections and a high-performance pneumatic actuator, these valves ensure fast quarter-turn operation, leak-tight sealing, and contamination-free flow control for food, beverage, dairy, pharmaceutical, biotech, and cosmetic industries.
Product Specifications and Overview
Alis Valves is a trusted Pneumatic 3 Way TC End Ball Valve Manufacturer in India, offering hygienic automated ball valves for flow diversion, mixing, and distribution in sanitary process systems. Designed with Tri-Clamp (TC) end connections and a high-performance pneumatic actuator, these valves ensure fast quarter-turn operation, leak-tight sealing, and contamination-free flow control for food, beverage, dairy, pharmaceutical, biotech, and cosmetic industries.
Size Range
DN15 to DN100 (½" to 4")
Pressure Rating
PN10 / PN16
Body Material
SS304, SS316, SS316L
Ball Material
SS316 / SS316L
Seat Material
PTFE / RPTFE
End Connection
Tri-Clamp (TC End)
Surface Finish
Mirror Polish ≤ Ra 0.8 µm (Optional: Ra 0.4 µm)
Actuator Type
Rack & Pinion Pneumatic Actuator
Actuator Action
Double Acting / Spring Return
Air Supply Pressure
4–8 Bar
Accessories
Solenoid Valve, Positioner, Air Filter Regulator (AFR), Limit Switch Box
Temperature Range
-20°C to +180°C (Depends on seat & seal material)
Design Standards
ASME BPE, ISO 5211, FDA Compliant Materials (Optional)
Product Gallery
Applications
Ammonia
High-performance flow automation engineered for Ammonia operations.
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Accessories
Accesories
Air Filter Regulator (AFR)
Alis Valves is a trusted Air Filter Regulator (AFR) Manufacturer Supplier in…
Accesories
Manual Override (MOR)
Alis Valves is a leading Manual Override (MOR) Manufacturer & Supplier in…
Accesories
Solenoid Valve
ALIS Valves is a Solenoid Valve Manufacturer and Supplier in India, offering…
Frequently Ask Questions
It is a three-port sanitary ball valve with Tri-Clamp connections and a pneumatic actuator for automated flow diversion, selection, and routing.
Alis Valves manufactures and supplies Pneumatic 3-Way TC End Ball Valves for food, dairy, pharmaceutical, beverage, chemical, and other hygienic process applications.
Consider L-port or T-port configuration, valve size, TC connection size, media, pressure, temperature, body material, seat material, actuator torque, air pressure, and fail position.
TC means Tri-Clamp, a hygienic connection that allows quick installation, dismantling, cleaning, and maintenance.
