Engineered valve solutions tailored for critical Cement operating processes.

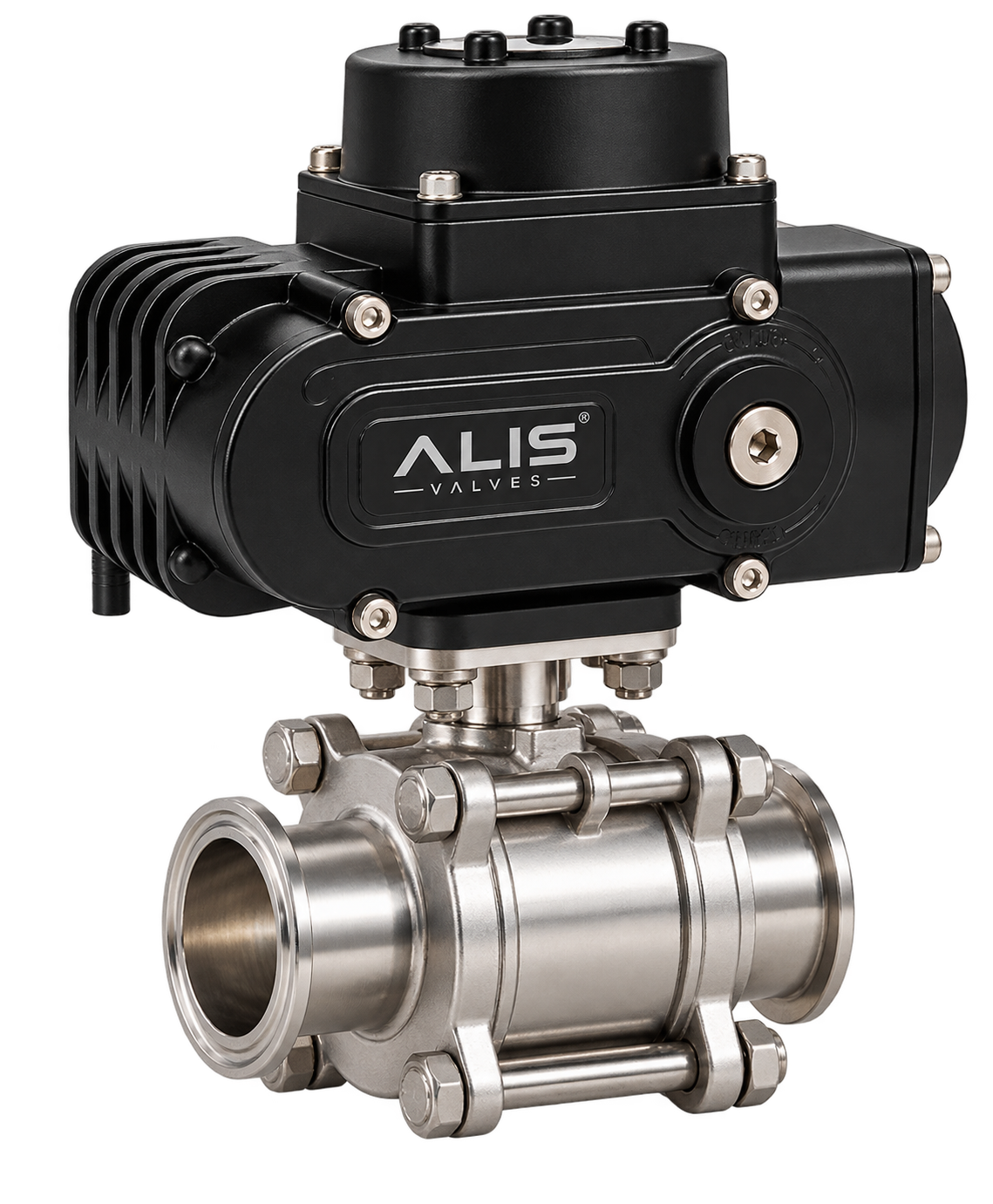

Electric TC End Ball Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Electric TC End Ball Valve Manufacturer and Supplier in India, offering hygienic automated ball valves for food, dairy, beverage, pharmaceutical, biotechnology, and cosmetic industries. Designed with sanitary Tri-Clamp (TC) end connections and a high-performance electric actuator, these valves provide precise quarter-turn operation, contamination-free flow control, and reliable leak-tight sealing for demanding sanitary process applications.
Product Specifications and Overview
Alis Valves is a trusted Electric TC End Ball Valve Manufacturer and Supplier in India, offering hygienic automated ball valves for food, dairy, beverage, pharmaceutical, biotechnology, and cosmetic industries. Designed with sanitary Tri-Clamp (TC) end connections and a high-performance electric actuator , these valves provide precise quarter-turn operation, contamination-free flow control, and reliable leak-tight sealing for demanding sanitary process applications.
Size Range
DN15 to DN100 (½" to 4")
Pressure Rating
PN10 / PN16
Body Material
SS304, SS316, SS316L
Ball Material
SS316 / SS316L
Seat Material
PTFE / RPTFE
Surface Finish
Mirror Polish ≤ Ra 0.8 µm (Optional: Ra 0.4 µm)
Actuator Type
Quarter-Turn Electric Actuator
Power Supply
24V DC, 24V AC, 110V AC, 230V AC
Enclosure Protection
IP67 / IP68
Control Signal
4–20 mA, 0–10 V, Modbus (Optional)
Temperature Range
-20°C to +180°C (Depends on seat & seal material)
Design Standards
ASME BPE, ISO 5211, FDA Compliant Materials (Optional)
Product Gallery
Applications
Ammonia
High-performance flow automation engineered for Ammonia operations.
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Frequently Ask Questions
It is a sanitary ball valve with Tri-Clamp connections and an electric actuator for automated flow isolation and remote operation.
Alis Valves manufactures and supplies Electric TC End Ball Valves for food, dairy, pharmaceutical, beverage, chemical, and other hygienic process applications.
An electric TC ball valve uses an electric actuator, while a pneumatic version uses compressed air. Electric actuation is useful where electrical automation is preferred, while pneumatic operation generally provides faster quarter-turn movement.
Tri-Clamp connections provide a hygienic, compact, and easily removable connection, making them ideal for sanitary processing.
