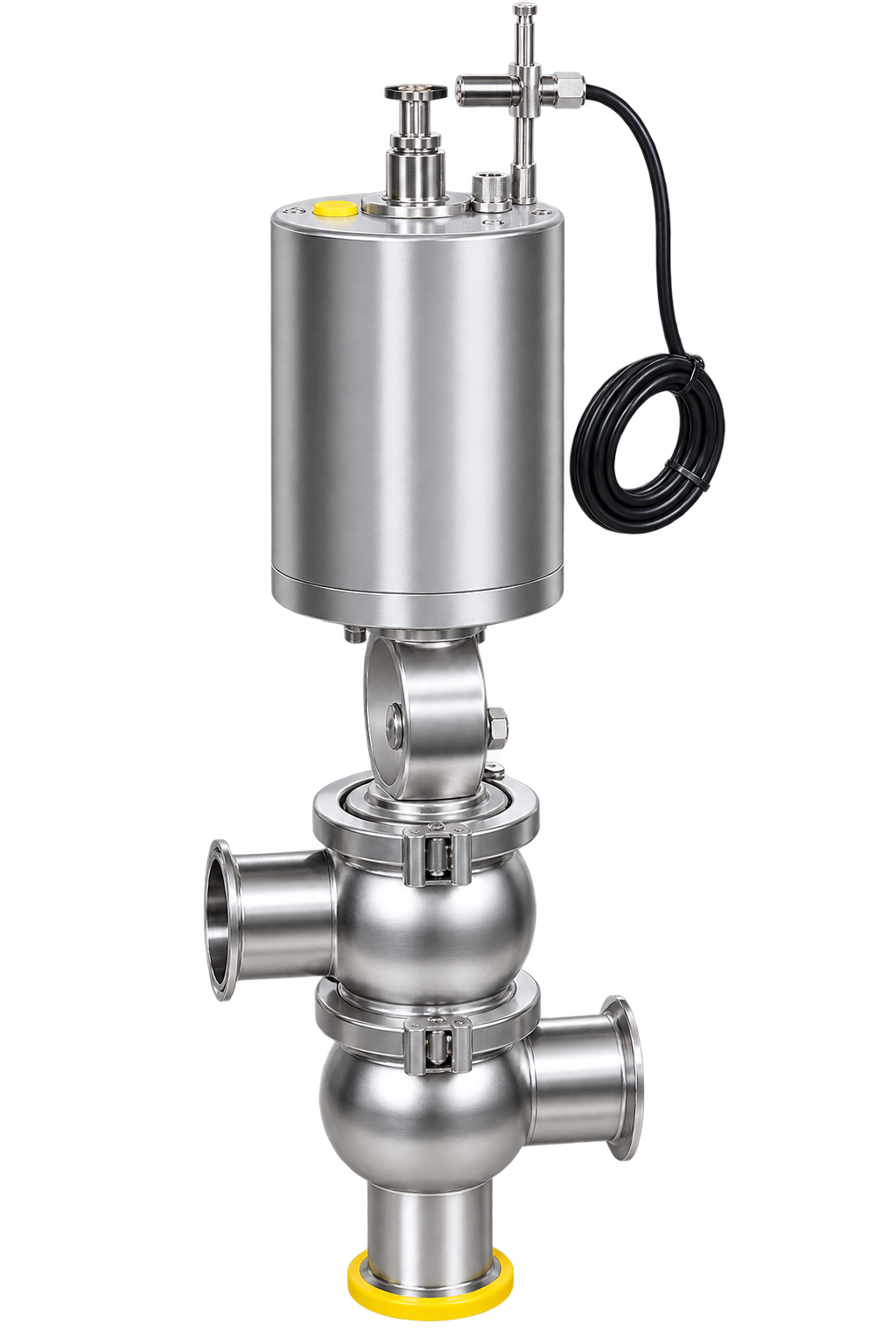

Sanitary Diverter Valve
Resistant
Sealing
Operation
Long Life
Alis Valves is a trusted Sanitary Diverter Valve Manufacturer & Supplier in India, offering hygienic valves designed for contamination-free flow diversion and distribution in clean process systems. Engineered with polished internal surfaces and crevice-free construction, these valves ensure smooth flow, easy cleaning, and compliance with strict hygiene standards. They are widely used in pharmaceutical, food & beverage, dairy, biotechnology, cosmetics, and clean utility applications.
Specifications
Size Range
DN15 to DN150 (½" to 6")
Body Material
SS304, SS316, SS316L
Seat Material
PTFE, EPDM, Silicone (Food Grade)
Temperature Range
-20°C to +180°C
Pressure Rating
PN10, PN16 / ANSI Class 150
Surface Finish
Mirror Polish (Ra ≤ 0.8 µm / Optional Ra ≤ 0.4 µm)
End Connection
Tri-Clamp (TC), SMS, DIN, RJT
Standards
FDA, 3A, ASME BPE, ISO 5211
Product Images
Frequently Ask Questions
A Sanitary Diverter Valve is a hygienically designed valve used to redirect or switch process flow between different pipelines, tanks or processing equipment while minimizing contamination and product retention.
Low dead space helps minimize:
Product retention
Bacterial growth opportunities
Cross-contamination
Cleaning difficulties
Product waste
This is especially important in pharmaceutical, dairy and food-processing applications.
Alis Valves is a Sanitary Diverter Valve manufacturer and supplier in India, providing hygienic flow-routing solutions for pharmaceutical, dairy, food & beverage, biotechnology, cosmetics and other sanitary process industries. The valves can be configured with suitable SS316L construction, sanitary connections, hygienic seals and manual or automated operation.
They are commonly used in:
Pharmaceutical plants
Dairy plants
Food-processing facilities
Biotechnology plants
Breweries
Cosmetics manufacturing
Hygienic chemical processes
Depending on the application, sanitary valve projects may require specifications or standards such as:
ASME BPE
3-A Sanitary Standards
EHEDG requirements
FDA-related material requirements
The applicable requirements should be confirmed for the specific industry and project.
