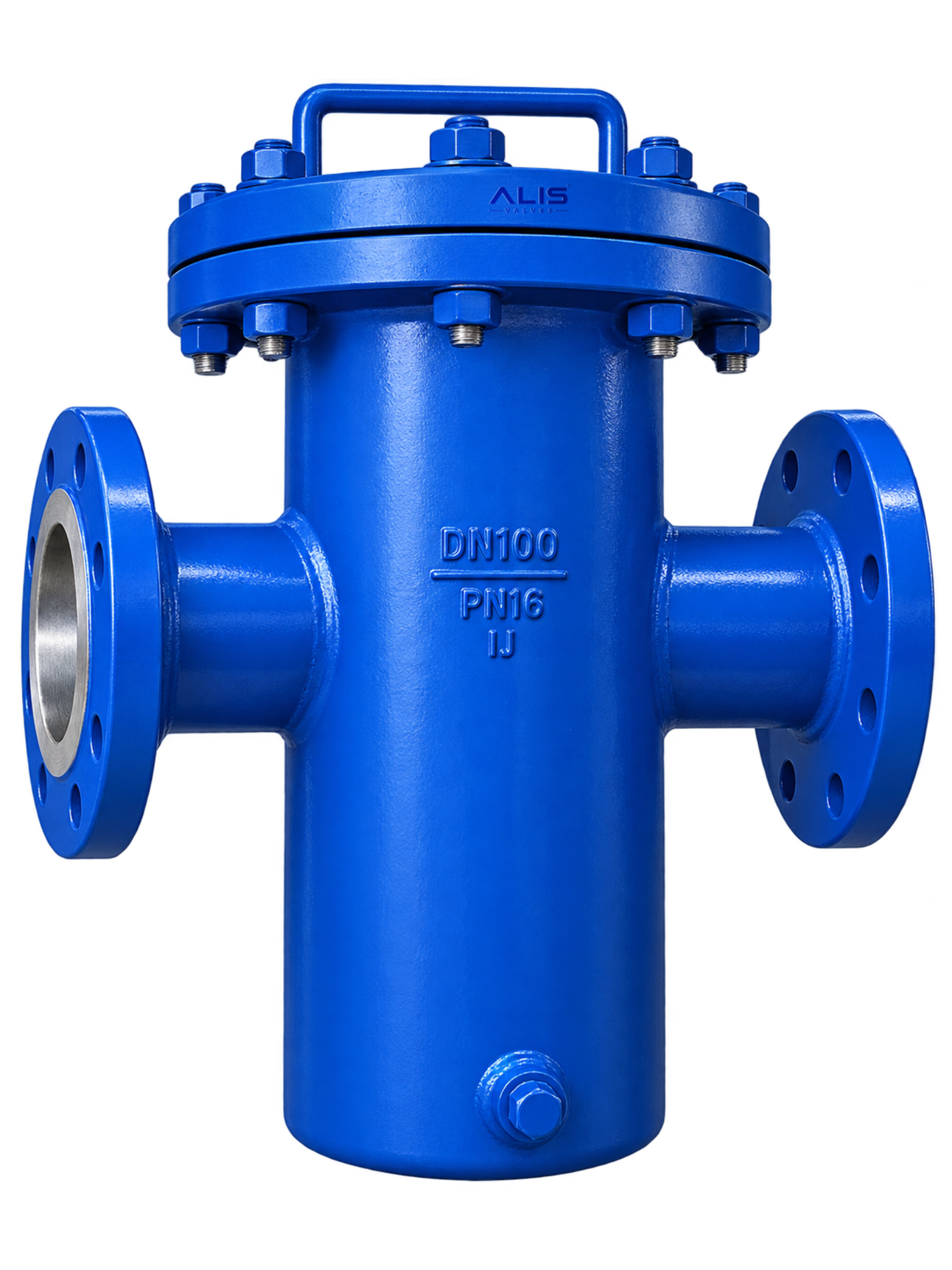

T Type Strainer
Resistant
Sealing
Operation
Long Life
Alis Valves offers robust T Type Strainers designed for high-capacity filtration in industrial pipelines. The T-shaped body provides a larger filtration area compared to Y strainers, making it ideal for handling high flow rates and heavy debris loads. These strainers are widely used in applications where continuous and efficient filtration is required to protect pumps, valves, and downstream equipment.
Specifications
Size Range
DN 50 to DN 1200
Body Material
Cast Iron / Cast Steel / Stainless Steel
Filtration Size
100 to 5000 Microns
Cover Type
Bolted / Quick Open
Media
Water, Oil, Chemicals, Slurry
Pressure Rating
PN 10 to PN 40
Screen Material
SS 304 / SS 316
End Connection
Flanged
Temperature Range
Up to 350°C (Depends on Material)
Product Images
Frequently Ask Questions
A T Type Strainer is a pipeline filtration device with a T-shaped body and removable screen or basket designed to capture solid particles and debris from process fluids. It is particularly useful for larger pipelines and applications requiring higher filtration capacity.
Its major advantage is the large filtration area and high dirt-holding capacity, making it suitable for high-flow and larger-bore industrial pipelines.
Alis Valves is a T Type Strainer manufacturer and supplier in India, offering industrial filtration solutions for oil & gas, chemical, petrochemical, power generation, water treatment and process industries. T-type construction is particularly suitable for applications requiring high flow capacity, large filtration area and reliable protection of downstream equipment.
The body and filtration chamber are arranged in the shape of the letter T, which provides space for a relatively large filtration element.
Both can use removable basket-type filtration elements, but their configurations differ.
A T Type Strainer is particularly useful for large-bore/high-flow applications, while a conventional basket strainer is often selected where a larger removable basket and convenient top access are required.
