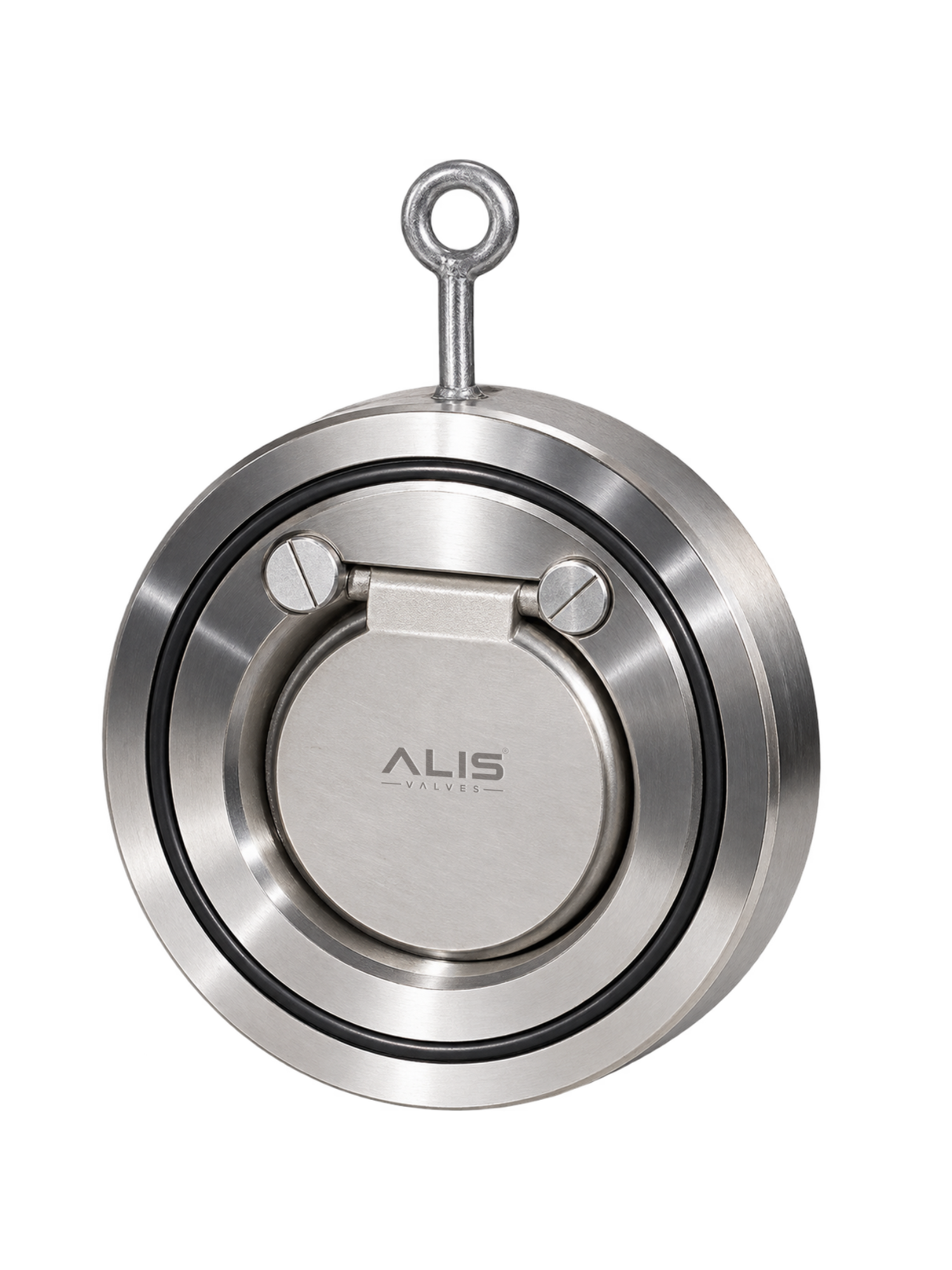

Wafer Type Disc Check Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves offers high-performance Wafer Type Disc Check Valve Manufacturer and Supplier in India designed for compact installation and efficient backflow prevention. These valves are installed between flanges and use a spring-loaded disc (single or dual plate) that ensures quick closing, reducing the risk of water hammer. Ideal for modern pipeline systems, wafer check valves provide reliable performance with minimal space requirement and low pressure loss.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Size Range

DN 50 to DN 500

Pressure Rating

PN 10 to PN 40 / Class 150-300

Body Material

Cast Iron / Cast Steel / Stainless Steel

Disc Material

SS 304 / SS 316

Seat Type

Metal Seated / Soft Seated

End Connection

Wafer Type (Between Flanges)

Operation

Automatic (Spring Loaded)

Temperature Range

Up to 400°C (Depends on Material)

Media

Water, Oil, Gas, Steam

Download GAD Drawing

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a Wafer Type Disc Check Valve?

A Wafer Type Disc Check Valve is an automatic non-return valve that allows fluid to flow in one direction and prevents reverse flow. The valve uses a spring-loaded disc that opens under forward-flow pressure and closes when flow stops.

Why Is It Called a Wafer Check Valve?

It has a compact, thin body designed to be installed between two pipe flanges, rather than having integral flanges of its own.

Can It Prevent Backflow?

Yes. Backflow prevention is its primary function.

How Does It Work?

During forward flow, the pressure of the fluid pushes the disc away from the seat. When the flow decreases or reverses, the spring pushes the disc back onto the seat, preventing backflow.

Does It Require an Actuator?

No. The valve is self-acting and operates through fluid pressure and its internal spring.

Who Is a Wafer Type Disc Check Valve Manufacturer in India?

Alis Valves manufactures and supplies Wafer Type Disc Check Valves for industrial backflow-prevention applications. Its listed configuration includes CF8/CF8M, cast iron and cast-steel bodies, ½"–10" sizes, SS304/SS316 and other disc options, up to 10 bar operating pressure and up to 80°C operating temperature.
