Swing Check Valve

Corrosion
Resistant
Leak Tight
Sealing
Automated
Operation
Low Maintenance
Long Life

Alis Valves offers high-quality Swing Check Valves designed to prevent reverse flow in pipelines. The valve operates automatically using a hinged disc that swings open with forward flow and closes when flow stops or reverses. These valves are widely used in water, oil, gas, and process industries to protect pumps, compressors, and other equipment from backflow damage.

DOWNLOAD CATALOGUE

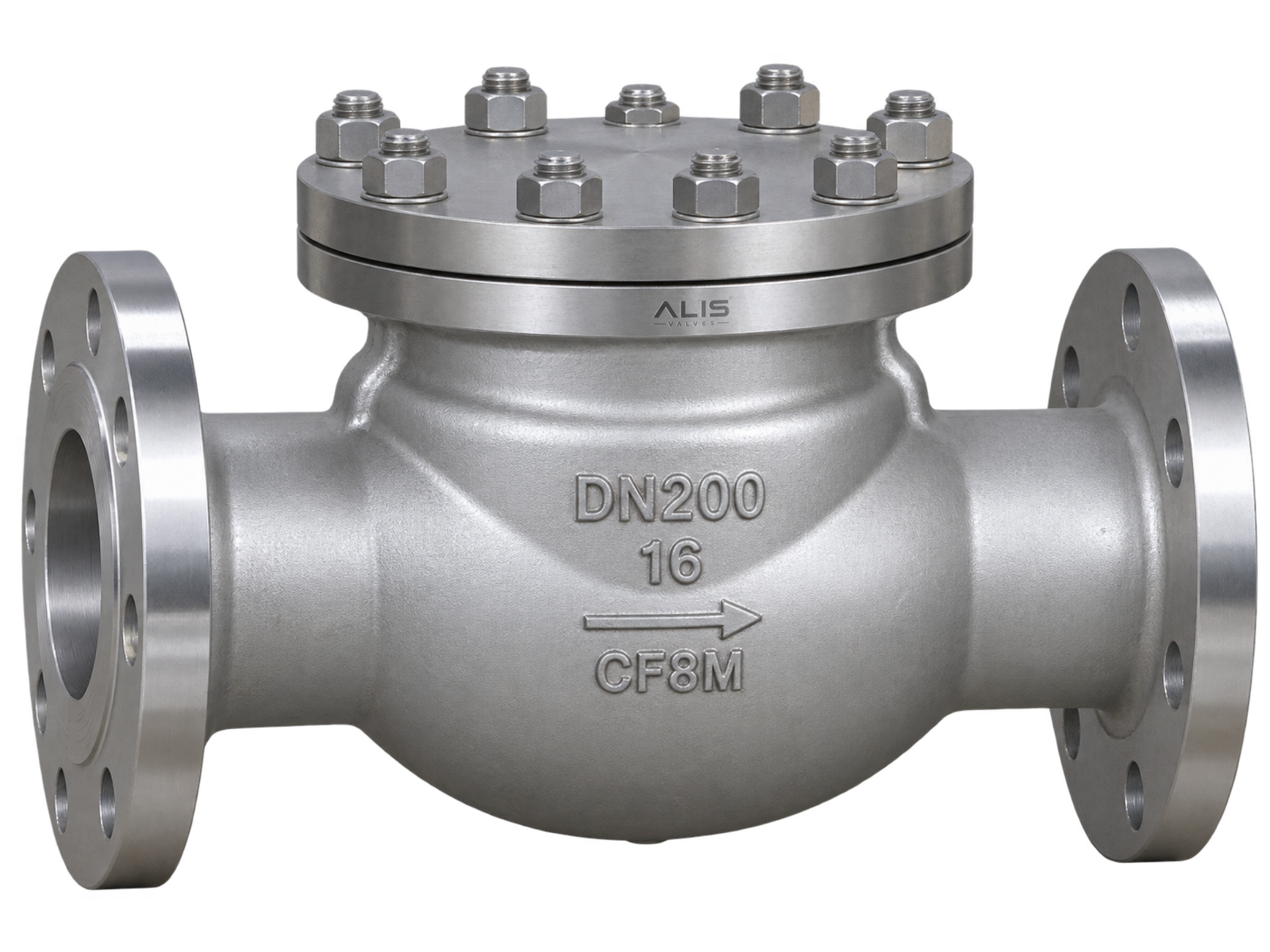

Swing Check Valve

Product Specifications and Overview

Alis Valves offers high-quality Swing Check Valves designed to prevent reverse flow in pipelines. The valve operates automatically using a hinged disc that swings open with forward flow and closes when flow stops or reverses. These valves are widely used in water, oil, gas, and process industries to protect pumps, compressors, and other equipment from backflow damage.

Size Range

DN 50 to DN 1000

Pressure Rating

PN 10 to PN 40 / Class 150-300

Body Material

Cast Iron / Cast Steel / Stainless Steel

Disc Material

SS / CI / Bronze

Seat Type

Metal Seated / Soft Seated

End Connection

Flanged / Butt Weld

Installation

Horizontal / Vertical (Upward Flow)

Temperature Range

Up to 400°C (Depends on Material)

Media

Water, Oil, Gas, Steam

Download GAD Drawing
Swing Check Valve

Product Gallery

Swing Check Valve

Industries Served

Cement

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

A Swing Check Valve is an automatic non-return valve that allows fluid to flow in one direction and prevents it from flowing backward.
Its primary purpose is to prevent backflow and protect pumps, compressors, pipelines and other process equipment.
A Swing Check Valve uses one hinged disc, while a Dual Plate Check Valve uses two spring-assisted plates. Dual-plate designs generally provide a more compact construction and faster closing, while swing check valves offer a simple and robust construction.
During normal forward flow, fluid pressure pushes the disc away from its seat. When flow decreases, gravity and reverse-flow pressure cause the disc to swing back onto the seat, stopping reverse flow.
No. A conventional swing check valve is self-operating and does not require a pneumatic, electric or hydraulic actuator.
Alis Valves manufactures and supplies industrial check valves for water treatment, oil & gas, chemical, petrochemical, power generation, HVAC and general process applications, including swing check valve solutions.
