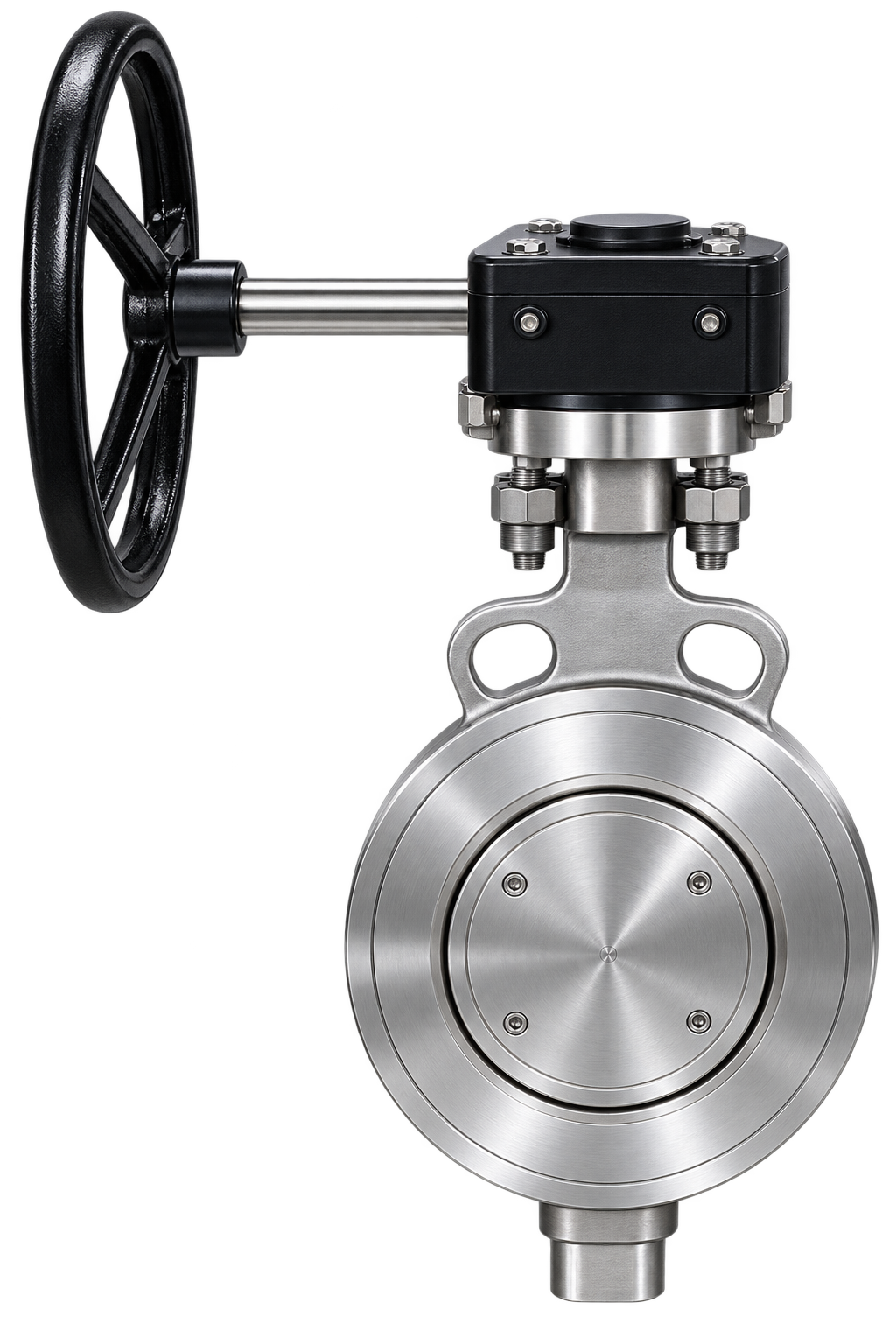

Wafer Type Double Offset Butterfly Valve

Corrosion
Resistant
Leak Tight
Sealing
Automated
Operation
Low Maintenance
Long Life

Alis Valves is a trusted Wafer Type Double Offset Butterfly Valve Manufacturer & Supplier in India, offering high-performance butterfly valves for medium to high-pressure industrial applications. Designed with a compact wafer body and double offset disc geometry, these valves provide reduced seat wear, low operating torque, reliable shut-off, and extended service life for oil & gas, petrochemical, power generation, water treatment, chemical processing, and HVAC industries.

DOWNLOAD CATALOGUE
Wafer Type Double Offset Butterfly Valve

Product Specifications and Overview

Alis Valves is a trusted Wafer Type Double Offset Butterfly Valve Manufacturer & Supplier in India, offering high-performance butterfly valves for medium to high-pressure industrial applications. Designed with a compact wafer body and double offset disc geometry, these valves provide reduced seat wear, low operating torque, reliable shut-off, and extended service life for oil & gas, petrochemical, power generation, water treatment, chemical processing, and HVAC industries.

Size Range

DN50 to DN500 (2" to 20")

Pressure Rating

PN10, PN16, PN25, PN40 / ANSI Class 150 & 300

Body Material

Ductile Iron, Carbon Steel (WCB), SS304, SS316

Disc Material

SS304, SS316, Duplex Stainless Steel

Seat Material

PTFE, RPTFE, EPDM, NBR, Metal Seat (Optional)

Temperature Range

-20°C to +250°C (Up to +550°C with Metal Seat)

Leakage Class

API 598 / ISO 5208

Design Standards

API 609, ASME B16.34, ISO 5211

Download GAD Drawing
Wafer Type Double Offset Butterfly Valve

Product Gallery

Wafer Type Double Offset Butterfly Valve

Industries Served

Cement

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

It is a wafer-style butterfly valve with a double-offset disc and shaft arrangement, designed to reduce seat contact during operation and provide reliable isolation with lower operating torque.
The valve has a compact body installed between compatible pipeline flanges, rather than having integral flanges on the valve body.
Alis Valves manufactures and supplies Wafer Type Double Offset Butterfly Valves for oil & gas, petrochemical, power generation, water treatment, chemical processing, HVAC, and other industrial applications.
The double-offset design causes the disc to move away from the seat early during opening, reducing rubbing, friction, and seat wear.
Yes. The standard listed temperature range is -20°C to +250°C, while the metal-seat configuration can be used up to approximately +550°C, subject to the complete valve design and application conditions.
