Angle Control Valve

Corrosion
Resistant
Leak Tight
Sealing
Automated
Operation
Low Maintenance
Long Life

ALIS Valves is an Angle Control Valve Manufacturer and Supplier in India offering angle-pattern control valves for precise flow regulation in industrial process and utility applications. Designed for efficient throttling and control, these valves are suitable for steam, water, chemicals, oil & gas, power generation and process industries. Valve configuration, trim, actuator and materials can be selected according to the required pressure, temperature, flow rate and process conditions.

Request Services DOWNLOAD CATALOGUE

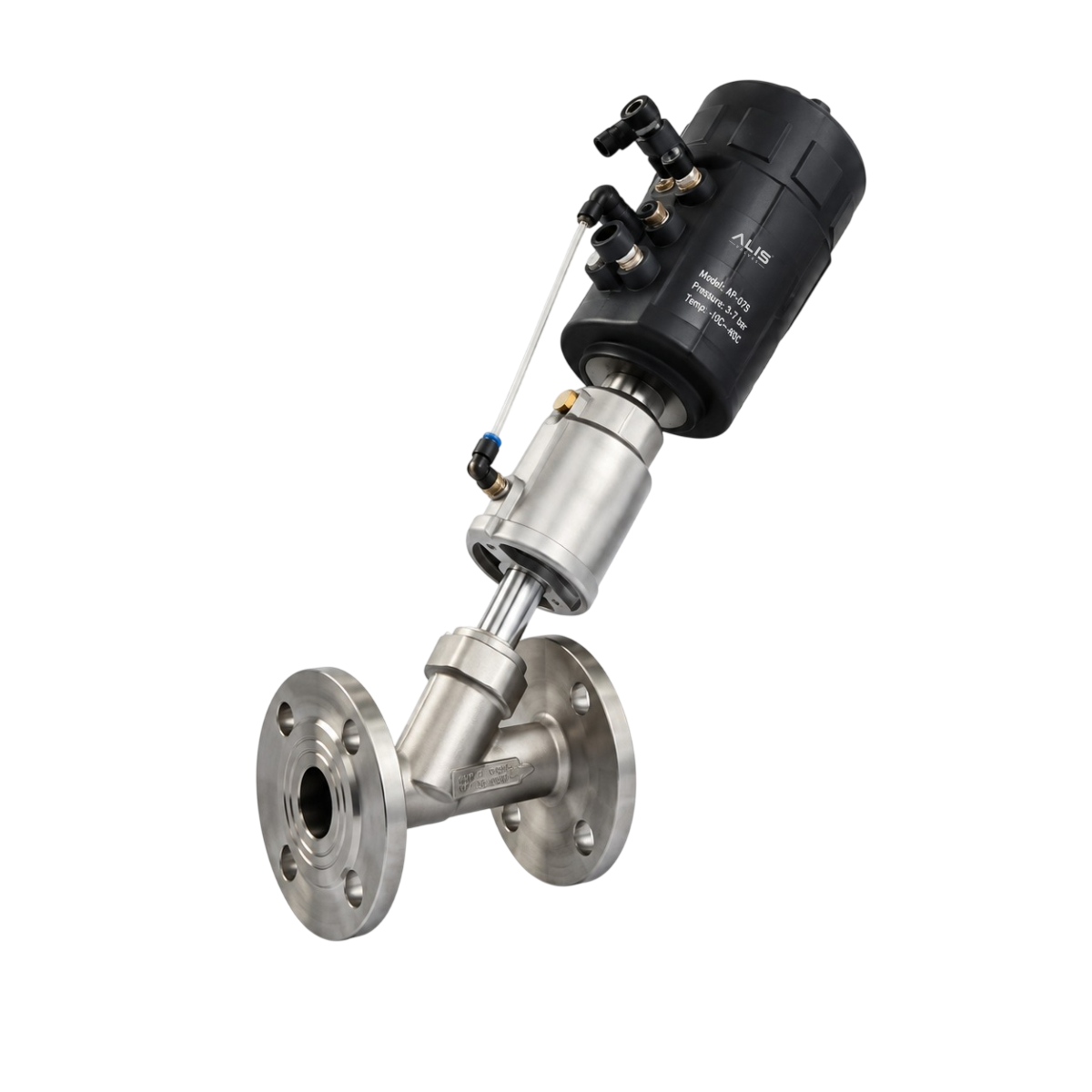

Angle Control Valve

Specifications

Nominal Size

1/2" to 12"

Body Material

WCB, WC6, WC9, SS304, SS316

Temperature Range

Application dependent; typically based on body, trim and sealing materials

Flow Characteristic

Linear / Equal Percentage / Quick Opening

Pressure Rating

PN16, PN25, PN40 / Class 150, 300, 600

Seat Type

Metal Seat / Soft Seat

Connection

Flanged / Butt Weld / Socket Weld

Control Signal

4–20 mA / 0–10 V

Product Gallery

Angle Control Valve

Accessories

Solenoid Valve

Solenoid Valve
Air Filter Regulator (AFR)

Air Filter Regulator (AFR)
Limit Switch

Limit Switch
Manual Override (MOR)

Manual Override (MOR)

Frequently Ask Questions

An Angle Control Valve is a globe-style control valve with inlet and outlet ports arranged at an angle, commonly 90°, for regulating process flow.
Required Cv is calculated from the flow rate and pressure conditions, together with the physical properties of the fluid. For standardized sizing, IEC 60534-2-1 / ANSI-ISA-75.01.01 methods are commonly used.
Common characteristics include Linear, Equal Percentage and Quick Opening. The appropriate characteristic depends on the process response and control requirements.
ALIS Valves is an Angle Control Valve Manufacturer in India, offering angle-pattern control valve solutions for industrial flow-control applications.
Cv is the valve flow coefficient used to indicate the flow capacity of the control valve under defined conditions. It is an important parameter for valve sizing.
The valve should generally be selected so that the normal operating point provides adequate control range rather than operating continuously near fully open or nearly closed. The exact target depends on the application and valve characteristic.
Yes, but high-pressure-drop applications require proper sizing and trim selection. Depending on service conditions, cavitation, flashing, noise, vibration and erosion may need to be evaluated.
