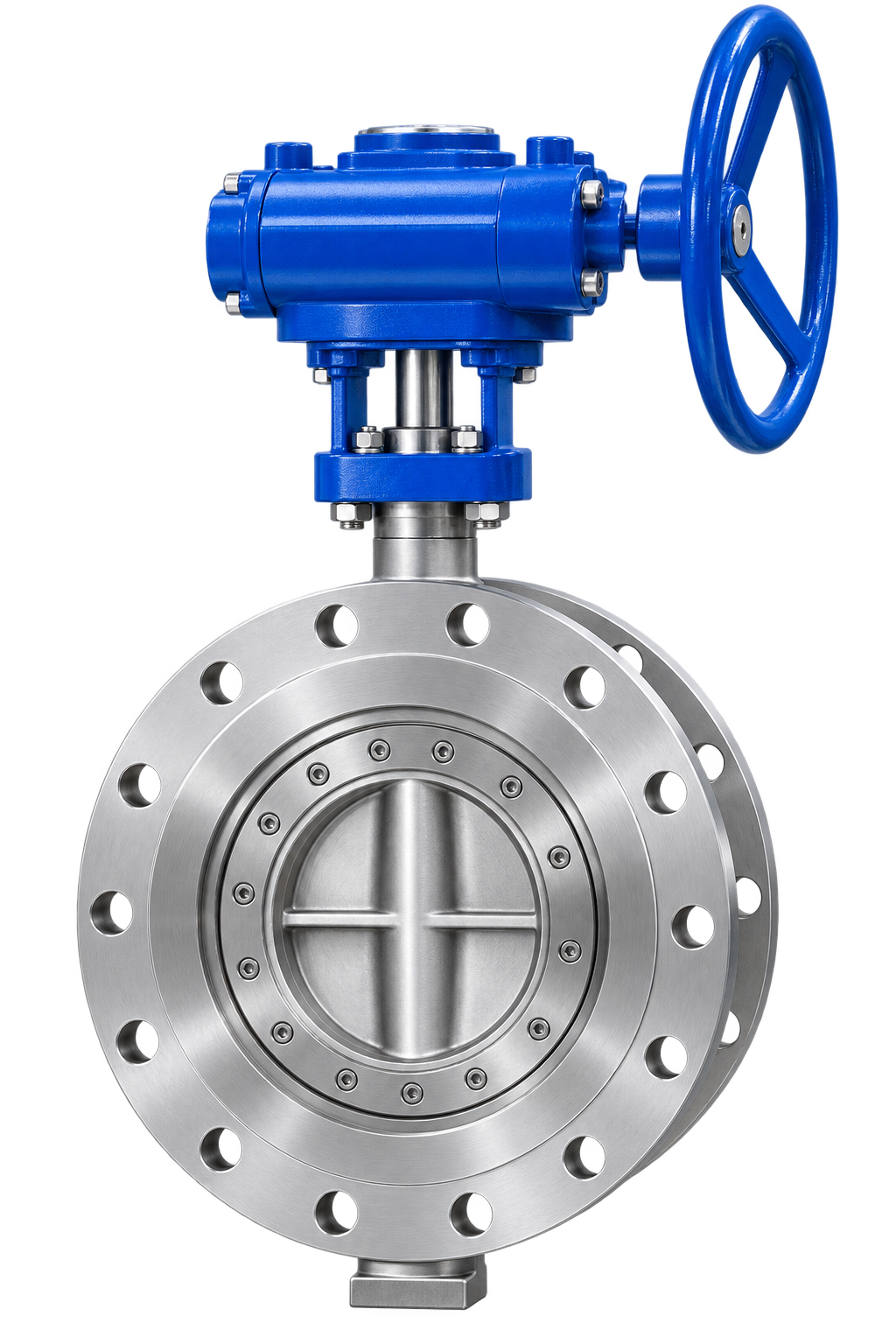

Flanged Triple Offset Butterfly Valve

Corrosion
Resistant

Leak Tight
Sealing

Automated
Operation

Low Maintenance
Long Life

Alis Valves is a trusted Double Flanged Triple Offset Butterfly Valve Manufacturer India, offering premium-performance butterfly valves for critical isolation, high-temperature, and high-pressure applications. Designed with a robust double flanged body and advanced triple offset geometry, these valves eliminate seat friction during operation, ensuring reliable metal-to-metal sealing, low operating torque, and extended service life. They are ideally suited for oil & gas, petrochemical, refineries, power generation, steam, chemical processing, and demanding industrial process systems.

DOWNLOAD CATALOGUE

Product Specifications and Overview

Alis Valves is a trusted Flanged Triple Offset Butterfly Valve Manufacturer India, offering premium-performance butterfly valves for critical isolation, high-temperature, and high-pressure applications. Designed with a robust flanged body and advanced triple offset geometry, these valves eliminate seat friction during operation, ensuring reliable metal-to-metal sealing, low operating torque, and extended service life. They are ideally suited for oil & gas, petrochemical, refineries, power generation, steam, chemical processing, and demanding industrial process systems.

Size Range

DN50 to DN500 (2" to 20")

Body Material

Carbon Steel (WCB), SS304, SS316, Duplex Stainless Steel

Flange Standard

ASME B16.5, EN 1092-1, IS, JIS (As Required)

Temperature Range

-29°C to +650°C (Higher temperatures available on request)

Fire Safe Standard

API 607 (Optional)

Pressure Rating

PN10, PN16, PN25, PN40, PN64 / ANSI Class 150, 300 & 600

Seat Material

Metal Seat (Stainless Steel, Stellite, Inconel, Hard-Faced Alloy)

Operation

Gear, Pneumatic, Electric

Leakage Class

API 598 / ISO 5208 / ISO 15848 (Optional)

Design Standards

API 609, ASME B16.34, ISO 5211

Product Gallery

Industries Served

Cement

Engineered valve solutions tailored for critical Cement operating processes.

Chemical

Engineered valve solutions tailored for critical Chemical operating processes.

Data centres

Engineered valve solutions tailored for critical Data centres operating processes.

Fertilizer

Engineered valve solutions tailored for critical Fertilizer operating processes.

Applications

Ammonia

High-performance flow automation engineered for Ammonia operations.

CO₂

High-performance flow automation engineered for CO₂ operations.

Compressed Air

High-performance flow automation engineered for Compressed Air operations.

Cryogenic

High-performance flow automation engineered for Cryogenic operations.

Frequently Ask Questions

What Is a Flanged Triple Offset Butterfly Valve?

It is a triple-eccentric butterfly valve with metal-to-metal seating and integral flanges on both sides, designed for demanding high-temperature and high-pressure applications.

Can Tungsten Carbide Coating Be Used?

Yes. Tungsten-carbide and other hard-facing options can be considered for abrasive or high-wear applications.

What Is the Main Advantage of Triple Offset Design?

The main advantage is non-rubbing sealing. Unlike conventional butterfly valves, the disc does not continuously rub against the seat, reducing friction and seat wear.

What Are the Three Offsets?

The design incorporates two eccentric shaft/disc offsets and a third offset in the conical sealing geometry. This creates a cam-like movement that removes the disc from the seat during opening.

Who Is a Flanged Triple Offset Butterfly Valve Manufacturer in India?

Alis Valves manufactures and supplies Flanged Triple Offset Butterfly Valves for oil & gas, refineries, petrochemical, power generation, chemical, steam, hot oil, cement, steel, flue gas and other severe-service industrial applications.
