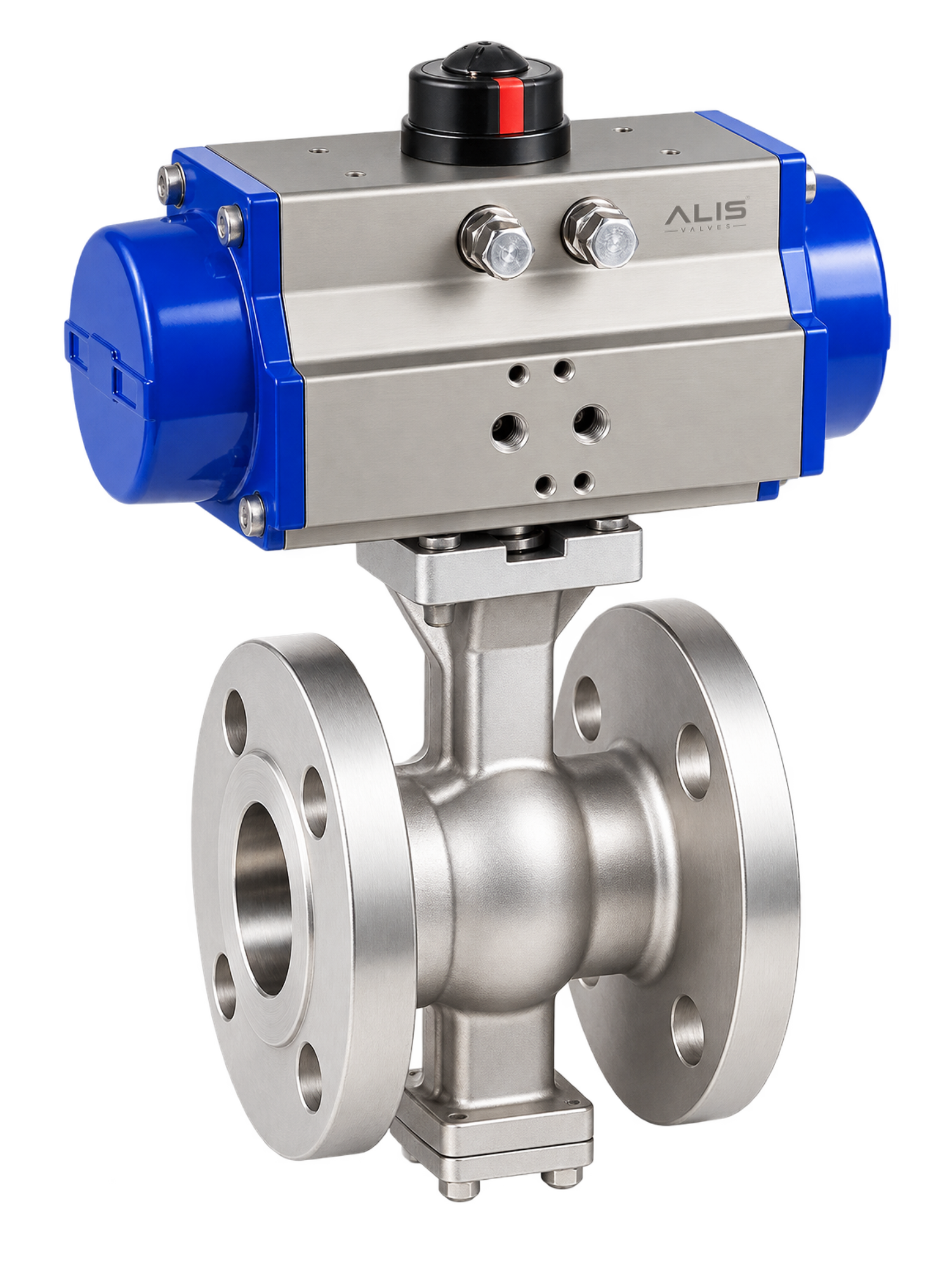

Segment Ball Valve
Resistant
Sealing
Operation
Long Life
Alis Valves offers high-performance Segment Ball Valves designed for precise flow regulation and throttling in demanding industrial processes. The segmented ball features a V-shaped opening that provides excellent control characteristics, high flow capacity, and reliable operation across a wide range of flow conditions. With its robust construction and excellent resistance to wear, the segment ball valve is particularly suitable for applications involving slurry, fibers, viscous fluids, and other difficult-to-control media.
Specifications
Size Range
DN 25 to DN 600
Body Material
Carbon Steel / Stainless Steel / Cast Steel
Seat Material
PTFE / Metal / Elastomer
Operation
Manual / Pneumatic / Electric
Temperature Range
Up to 400°C (Application Dependent)
Pressure Rating
PN 10 to PN 40 / Class 150
Ball Material
Stainless Steel / Hardened Alloy Steel
End Connection
Flanged / Wafer
Control
On-Off / Modulating
Product Images
Frequently Ask Questions
A Segment Ball Valve uses a partially spherical, segmented ball with a specially shaped opening to provide flow control and throttling. Its V-shaped opening allows better control at different flow rates than a conventional full-port ball valve.
Alis Valves is a Segment Ball Valve manufacturer and supplier in India, offering manual, pneumatic and electric segment ball valves for industrial flow regulation and demanding process applications.
Its main advantage is accurate modulating flow control combined with high flow capacity, making it suitable for difficult process applications.
The listed range is up to 400°C, application dependent.
