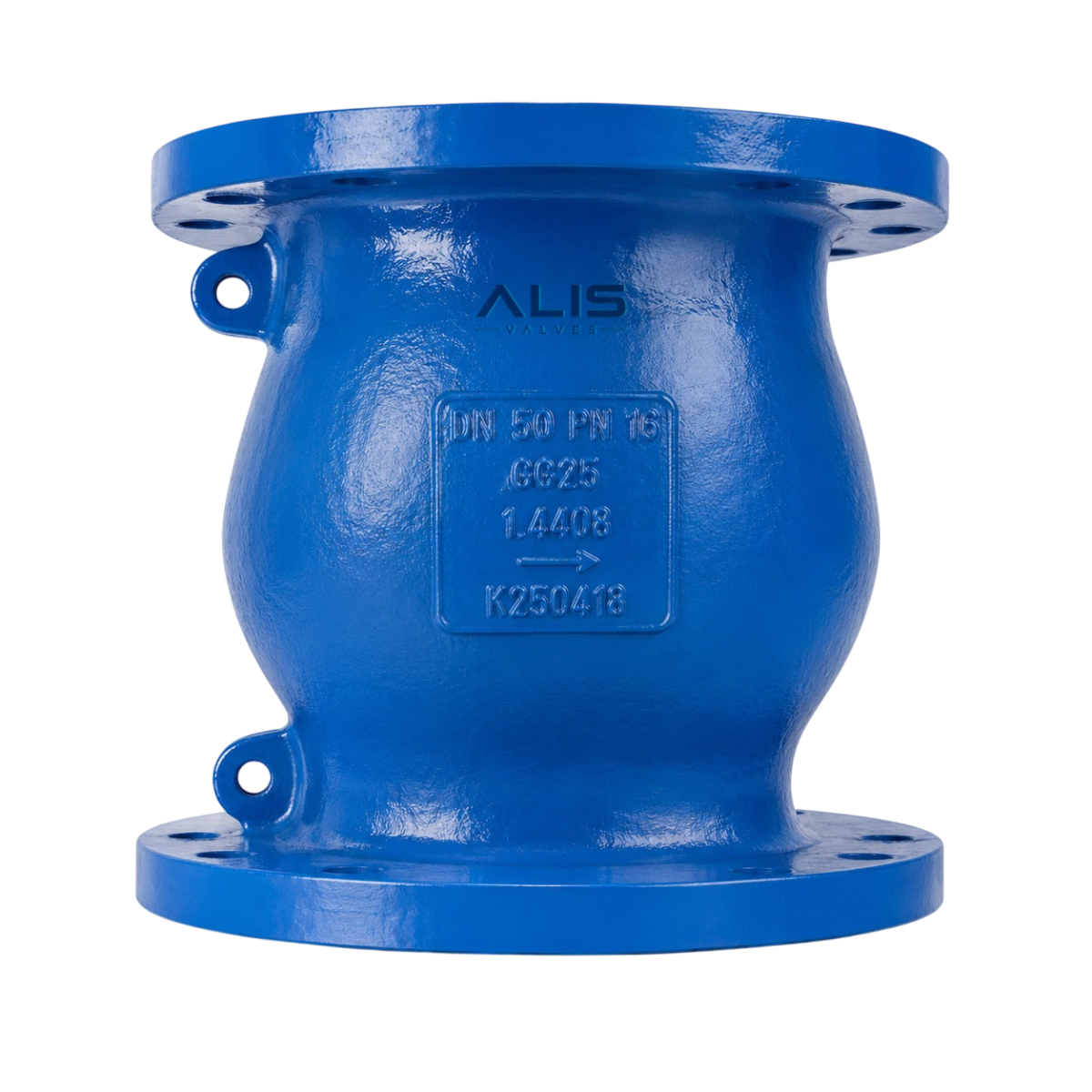

Axial Flow Check Valve
Resistant
Sealing
Operation
Long Life
Axial Flow Check Valve Manufacturer Supplier in India is designed for reliable one-way flow control and automatic prevention of reverse flow in industrial piping systems. Its co-axial construction allows the valve element to move along the same axis as the pipeline, providing a compact and efficient flow path with low pressure loss. The valve operates automatically according to the direction of flow and does not require external actuation. When the upstream pressure is sufficient, the valve opens to allow flow; when flow decreases or reverses, the valve closes to help prevent backflow.
Product Specifications and Overview
ALIS Valves offers Axial Flow Check Valves for industrial applications requiring reliable non-return flow control, efficient fluid movement and protection against reverse flow. These valves are designed to allow fluid to travel along the valve’s central axis while a guided disc or closure element moves to regulate the flow path. Their streamlined internal design can help reduce flow resistance and pressure loss, while the spring-assisted closing mechanism in applicable designs helps the valve respond quickly to changes in flow and reduce the risk of water hammer.
Axial Flow Check Valves are suitable for applications in oil and gas pipelines, petrochemical plants, power generation facilities, water distribution networks and other industrial fluid handling systems. They can be selected for compatible liquid or gas services according to the valve design and operating conditions. Important selection factors include flow rate, operating pressure, temperature, pressure drop, process media, valve size, body and trim materials, end connections and closing characteristics. Selecting the appropriate valve configuration helps support efficient flow, reliable backflow prevention and dependable performance under specified operating conditions.
Size Range
1/2" to 8"
End Connection
Threaded / Flanged
Body Material
SS 304 / SS 316 / Carbon Steel
Disc / Piston Material
SS 304 / SS 316
Seat Material
PTFE / EPDM / NBR / Metal Seat
Pressure Rating
Up to 16 Bar
Temperature Range
-20°C to 180°C*
Flow Direction
One-Way Flow
Installation
Horizontal / Vertical
Product Gallery
Applications
Ammonia
Industrial Valves for Ammonia Applications Industrial valves used in ammonia systems are selected according…
CO₂
High-performance flow automation engineered for CO₂ operations.
Compressed Air
High-performance flow automation engineered for Compressed Air operations.
Cryogenic
High-performance flow automation engineered for Cryogenic operations.
Download Brochure
Axial Flow Check Valve
Frequently Ask Questions
Its in-line co-axial construction provides a compact valve arrangement, making it useful where installation space is limited while maintaining automatic non-return protection.
Differential pressure determines the force available to open the valve and affects its operating response, pressure drop and closing behaviour.
Lower pressure drop helps reduce energy losses in the piping system and can improve overall flow efficiency, particularly in continuously operating systems.
An oversized check valve may operate inefficiently at low flow rates and can experience unstable opening and closing behaviour. Correct sizing is therefore important for reliable performance.
A Axial Flow Check Valve is an automatic non-return valve designed to allow fluid flow in one direction while preventing reverse flow. Its internal closing element moves along the same axis as the pipeline, providing a compact in-line design and reliable backflow protection.
The internal closing element responds automatically to changes in differential pressure. It opens with forward flow and moves toward the seat when flow decreases or reverses.
Cracking pressure is the minimum upstream pressure difference required to begin opening the valve. It is an important consideration when the available system pressure is relatively low.
Excessive flow velocity can increase pressure loss, wear and dynamic forces within the valve. Proper sizing helps maintain stable operation and reliable service life.
It should be considered when its compact in-line configuration, flow characteristics, closing response and installation requirements better match the piping system.
ALIS Valves is a Axial Flow Check Valve Manufacturer in India, offering reliable non-return valve solutions for industrial piping systems. Our Axial Flow Check Valve are designed for automatic reverse-flow prevention, compact installation and efficient flow control in demanding applications. They are suitable for water treatment, process industries, chemical plants, power plants, oil & gas and other industrial systems.
Related Products
Check Valve
Dual Plate Check Valve
Alis Valves is a leading Dual Plate Check Valve Manufacturer & Supplier…
Check Valve
Non Slam Disc Check Valve
ALIS Valves is a Non Slam Disc Check Valve Manufacturer in India,…
Check Valve

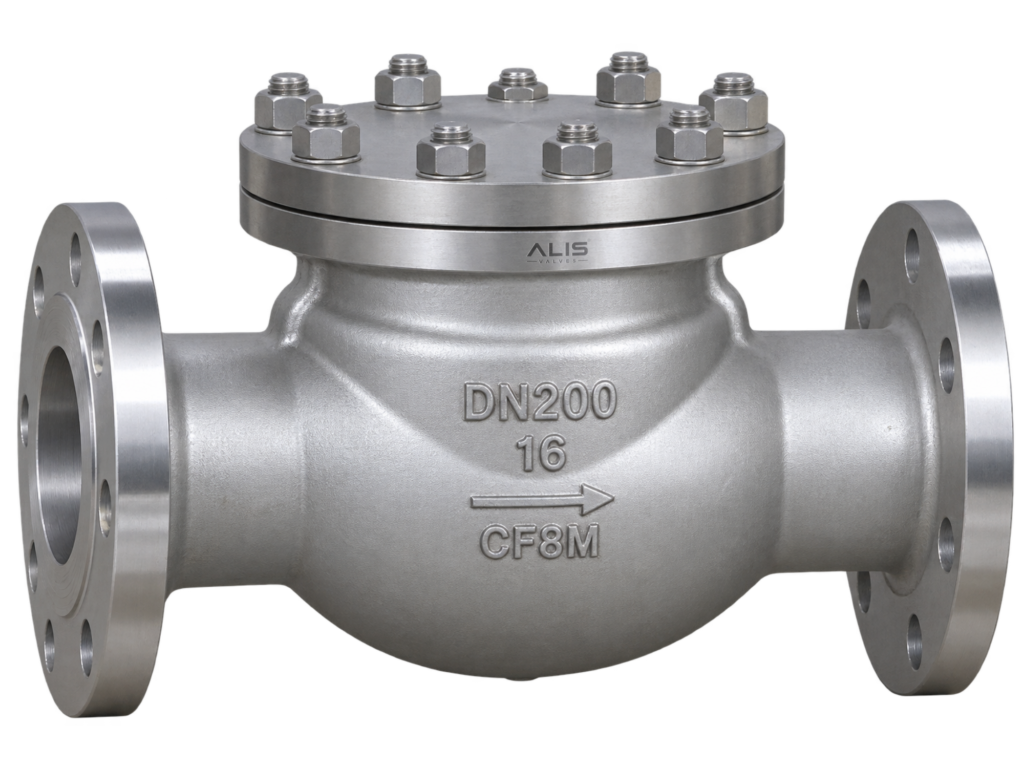

Swing Check Valve
Alis Valves offers high-quality Swing Check Valves designed to prevent reverse flow…
Check Valve

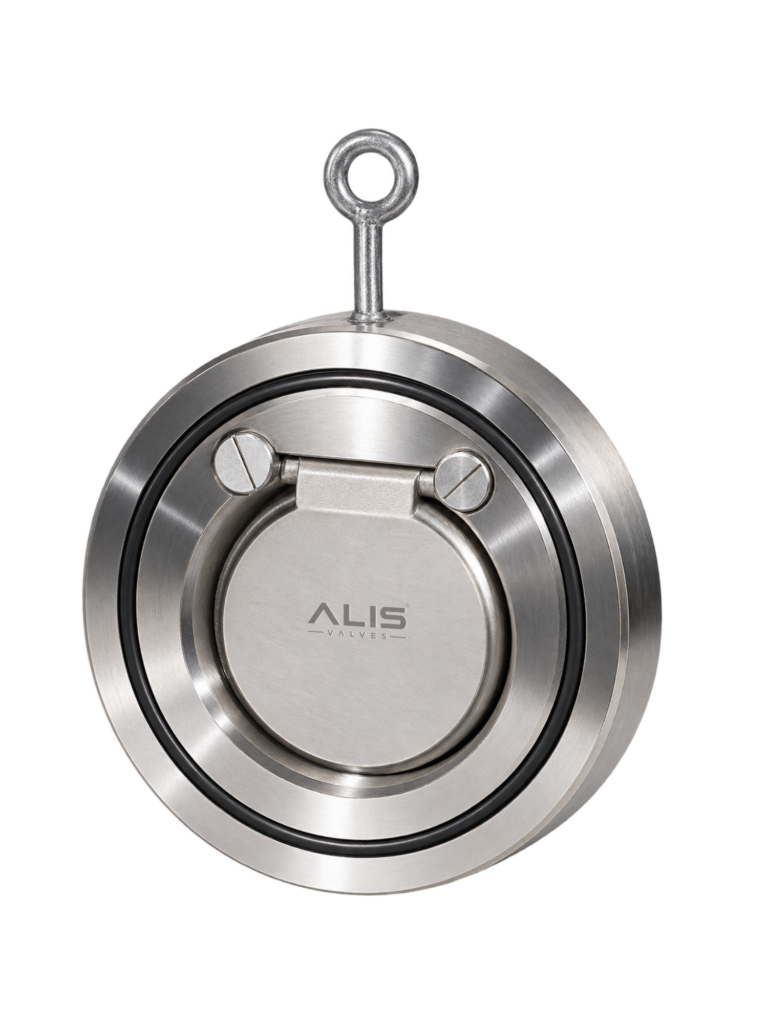

Wafer Type Disc Check Valve
